60W 80W 100W All In One LED Street Light With Luxeon 5050 Chips

60W 80W 100W All In One LED Street Light With Luxeon 5050 Chips
60W 80W 100W All In One LED Street Light With Luxeon 5050 Chips 60W 80W 100W All In One LED Street Light With Luxeon 5050 Chips 60W 80W 100W All In One LED Street Light With Luxeon 5050 Chips 60W 80W 100W All In One LED Street Light With Luxeon 5050 Chips

Large Image :  60W 80W 100W All In One LED Street Light With Luxeon 5050 Chips

Product Details:

Place of Origin: China
Brand Name: Leyond
Certification: CE,RoHS,C-TICK
Model Number: LY-ST31060PW

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiate 265-275 USD/PCS
Packaging Details: Input size:1023*373*175, Output size: 1077*210*430
Payment Terms: Western Union, Paypal, T/T
Supply Ability: 50000PCS /25-30 DAYS
Detailed Product Description
Material: Die-Casting Aluminum Housing Led Chips: Luxeon 5050 Chips
Solar Panel: 60W /18V Monocrystalline Silicon Luminous Efficiency: 175lm/W
Life Span: 50000 Hours Installation: 6-7m
High Light:

100W All In One LED Street Light

,

IK10 All In One LED Street Light

,

IK10 Solar Panel Street Light

60W 80W 100W All In One LED Street Light With Luxeon 5050 Chips



High Power 60W 80W 100W all in one solar led street light with Monocrystalline Silicon solar panel



Integrated Solar Led Street Light Of Specifications:



1-10V Dimmable Outdoor IP66 150w high power led street lights with Luxeon 3030 chips,10KV Surge Protection 2 Product Name 60W Solar Led Street Light
Battery 18650 lithium battery 12V 50Ah
Beam angle 150x65°
Solar panel

60W /18V monocrystalline silicon (Life span of 25 years, 80% efficiency)

Operating time

>12 hours ,Intelligent mode 3-4 days

(Affected by local use environment and sunlight)

Control Mode Time control + light sensor control + motion sensor control
Optional AC/DC Hybrid System
IP Rating / IK IP66 / IK10
Installation height(m) 6-7m


Solar Led Street Lighting Features:



1)All In One Die custing Alumium housing, Easy to installation and maintenance.Outdoor Waterproof can reach IP66



2)Lumileds Luxeon 5050 chips,Whole lamp output light effiency175 lm/W;



3)For the PC Lens, 8% light efficiency higher than the same type lights in the market, with higher light transmittance up to 98%.



4)60W /18V monocrystalline silicon (Life span of 25 years, 80% efficiency)



5)12V 50Ah 18650 lithium battery



6)CCT : 2700-6500K for optional, Warm White:2700-3200K:Neutral White:4000-4500K:Pure White:5000-6500K for optional.



7)MPPT Controller:Using the most advanced MPPT tracking control technology to improve system efficiency and reduce costs



8)AC/DC Hybrid system for optional:Features a DC detection function. If DC available, the system will automatically switch to lithium battery supply when the battery voltage rise to the DC switching point; the system will automatically switch to DC power supply when the battery voltage falls to the DC switching point; if DC powers off, the system will shut off output when the battery reaches the over-discharge point after continuous discharging.



9)Three control model : time control + light sensor control+ motion sensor control.



10) Motion and light sensor built in:solar street light goes on at dusk at 50% brightness. Can go from 50% power to full brightness when motion is detected. Three Intelligent Modes: Bright / DIM / Recharge. 1,Bright: motion activates for lighting when motion is detected for security light and to save battery; 2,DIM: 50% lighting for saving power when no motion; 3,Off/Recharge: automatically turns off in daylight and goes into recharge mode. (working mode can be adjusted according to client's demands).



All In One Solar Led Street Light Application:



Suitable for the street lighting; sidewalk lighting;roadway lighting; fence lighting; pathway lighting; campus lighting; park lighting; garden lighting;ramp lighting;boat dock lighting; remote area lighting;farm & ranch lighting.

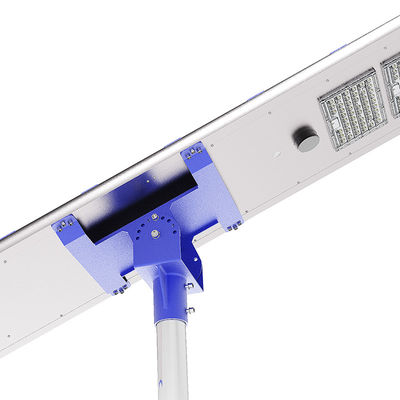

60W 80W 100W All In One LED Street Light With Luxeon 5050 Chips 1

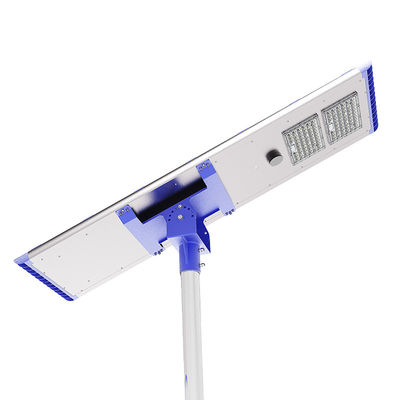

60W 80W 100W All In One LED Street Light With Luxeon 5050 Chips 2

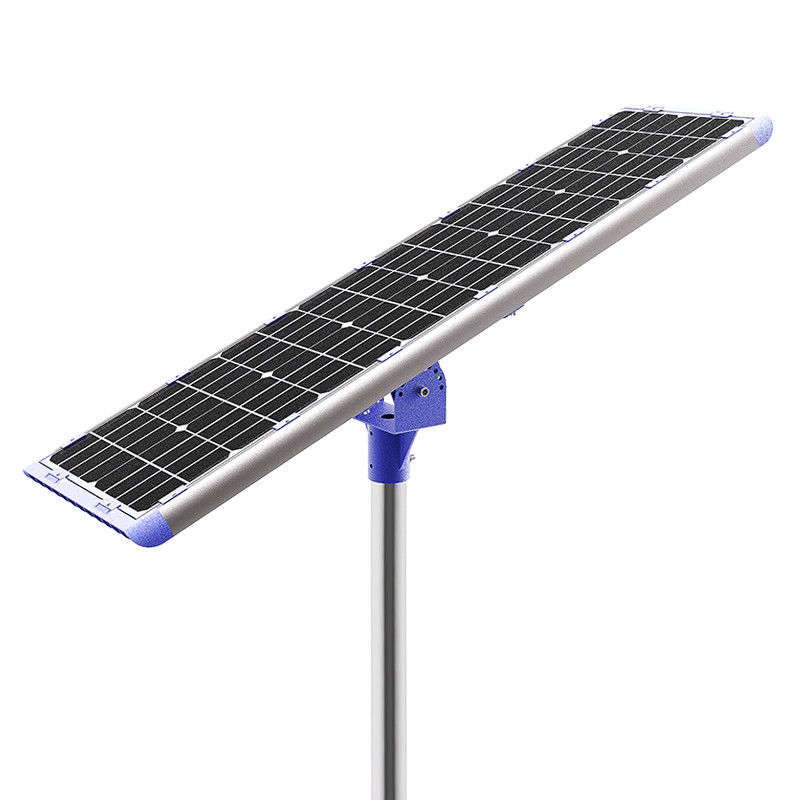

60W 80W 100W All In One LED Street Light With Luxeon 5050 Chips 3

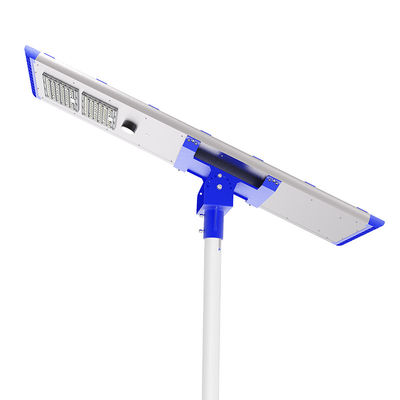

60W 80W 100W All In One LED Street Light With Luxeon 5050 Chips 4

Operation and Storage Condition



1.Operation Ambient Temperature -10 to +45°C, Relative Humidity 20~90%



2.Storage Ambient Temperature -10 to +35°C, Relative Humidity 5~95%



3.Mounting Height: Suitable for 6-7m height

Warning

1. Do not install in high temperature, closed and non-ventilated areas;

2. The installation location should not be installed under the tree or the place where there are obstructions. The solar panel must be exposed to sunlight in all directions;

3. When the product is stored in the warehouse, it needs to be charged and discharged every 3 months;

4. When the product is faulty, you need to find a professional to deal with it;

5. Eliminate scrapped products, must be handed over to the relevant departments for Centralized processing.

FAQ



- How to proceed an order for led light?
A: Contact our sales representatives by email, skype or making a call, we will soon send you confirm with you for your detailed requirements. Then we send you PI for your approval and payment. You can choose wire transfer, PayPal, west union to send us payment.

- Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

- Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available

- How long will be the lead time?
A. This will be subject to your order quantity. Normally, below 5,000pcs, we will deliver within 15 working days. For large
quantity, please confirm with your order.

- Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.

- How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.

- How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
