Product Details:
Payment & Shipping Terms:
|
| Product Item: | Solar LED Street Light | Lamp Power: | 60W |
|---|---|---|---|
| LED Chips: | Lumileds Luxeon 5050 | Materials: | Mono Solar Panel + Die Custing Aluminum Housing |
| Beam Angle: | 150*65deg | Control Mode: | Light Control+Time Control |
| High Light: | Luxeon 5050 Solar LED Lighting,Luxeon 5050 60W LED Street Light,ENEC 60W LED Street Light |
||
High Efficiency 60W Solar LED Lighting For Roadway Lighting Fixture
160Lm/W high efficiency Solar LED Street light 60W for roadway lighting fixture.
1. Outlook
02. Features:
1. The lamp adopts integrated structure design, with better heat dissipation design and longer life;
2. Using LUXEON 5050 lamp beads, the whole lighting effect is up to 160lm/W;
3. The solar panel is made of Monocrystalline silicon, with a higher conversion efficiency, up to 18%, and a service life of up to 25 years;
4. Using the most advanced MPPT tracking control technology to improve system efficiency and reduce costs;
5. It has functions of light control, time control, dimming, intelligent power saving + morning light;
6. Solar controller built-in lightning protection module;
7. Using ternary lithium battery technology, the battery capacity is high;
8. 365 days uninterrupted power.
9. Three control model:
Time control + light sensor control + motion sensor control;
Time control: It can be divided into 5 time periods, which is more humane and energy-saving;
Light sensor control: When the evening comes, when the solar panel battery voltage is lower than 3V,the lamp will automatically turn on;
Motion sensor control: A motion-sensing energy-saving mode. When a moving object is sensed, the lamp will have 100% brightness; when no moving object is sensed, the lamp will be in a low-power and energy-saving state, with a brightness of 10%-100% (can be set)
03. specification
|
Par NO Parameter |
LY-ST31060PW | LY-ST31060WW | LY-ST31060NW |
| Battery | 18650 lithium battery 12V 50 Ah | ||
| Beam angle | 150x65° | 150x65° | 150x65° |
| Pole diameter | 60MM | 60MM | 60MM |
| Light output | 60W | 60W | 60W |
| Luminous flux(lm) | 9600 | 9200 | 9500 |
| Color Temperature | Pure white:5000-6500K | Warm white:2700-3200K | Neutral white:4000-4500K |
| Solar panel | 60W /18V mono-crystalline silicon | ||
| CRI | ＞70 | ||
| Chip Brand | LUXEON 5050 | ||
| Operating time | Full power >12 hours ,Intelligent mode 3-4 days | ||
| Control Mode | Light Control + Time Control | ||
| Material | Die Casting Aluminum | ||
| Luminous efficiency(lm/w) | ＞160 | ||
| Lifespan(hrs) | ＞50000 | ||
| IP Rating | IP66 | ||
| Installation height | 6~8M | ||

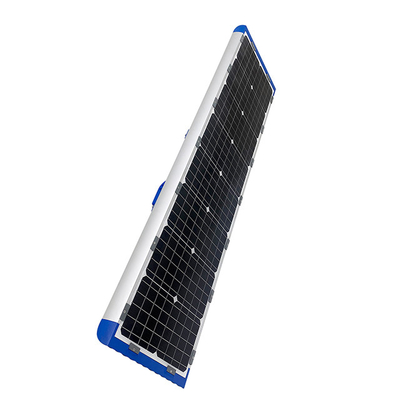

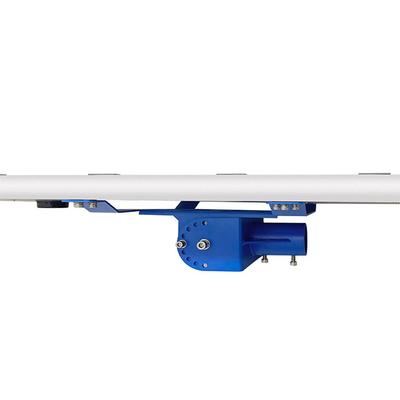

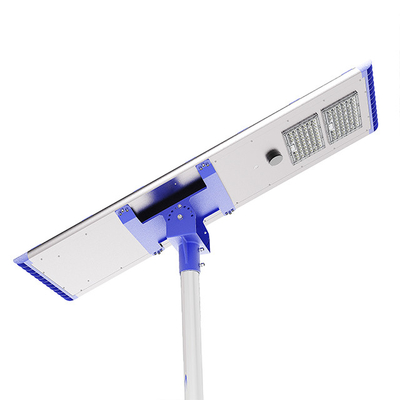

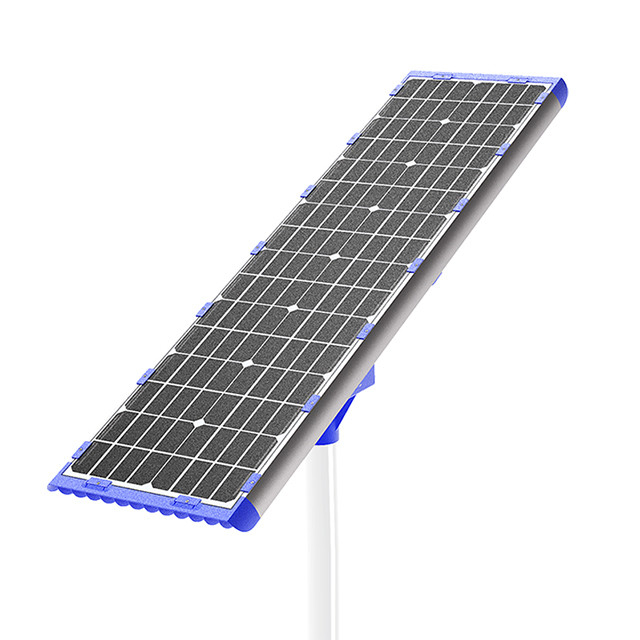

04. Lamp Detailed Pictures:
05. Package
Box Size: L1395.0×W210.0×H430.0mm (1 PCS LED Street Light)
L54.92*W8.26*H16.93 Inch
06. Operation and Storage Condition
l Operation Ambient Temperature -10 to +45°C, Relative Humidity 20~90%
l Storage Ambient Temperature -10 to +35°C, Relative Humidity 5~95%
l Mounting Height: Suitable for 6~8m height
07. Lamp internal wiring diagram
