Product Details:
Payment & Shipping Terms:
|
| Power: | 100W | LED Chip: | Lumileds 5050 |
|---|---|---|---|
| Battery: | LiCoMnNio2 Lithium Battery 12V 100 Ah | IP Rating: | IP65 |
| CCT: | 3000K / 4000K / 5000K / 6000K | Material: | Aluminum |
| Warranty: | 3 Years | Beam Angle: | 150X65 Degree |
| Solar Panel: | Mono-crystalline Silicon 18v 100w | Sensor Type: | Microwave Motion Sensor |
| Woring Time: | A Full Loaded Battery Could Work 5-7 Nights | Efficiency: | 185lm/w |
| CRI: | 70 | Lead Time: | 7-10 Days |
| Controller: | MPPT | Lifespan: | 6000 Times Recycle |
| Working Temperature: | -40-55 Degree Celsius | Application: | Landscape / Rural Road / Park / Path / Parking Lot |
| High Light: | Monocrystalline Solar LED Street Light,MPPT Sensor Solar LED Street Light,Monocrystalline Integrated LED Street Light |
||

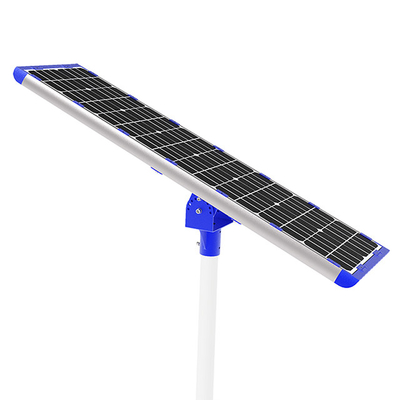

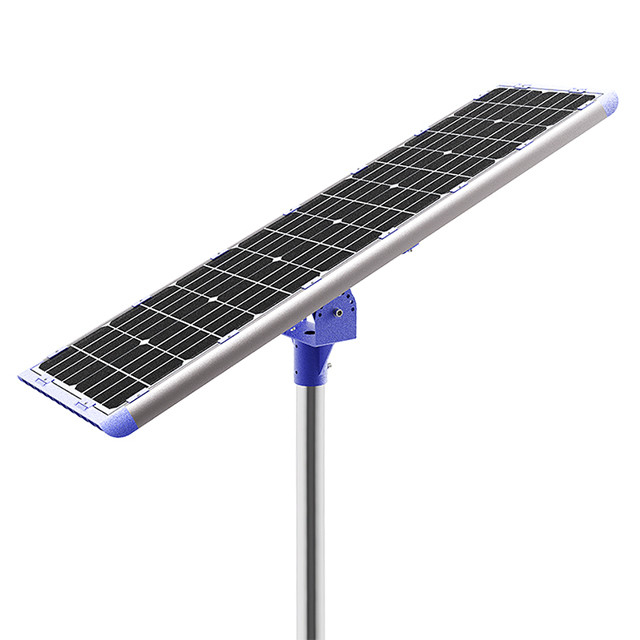

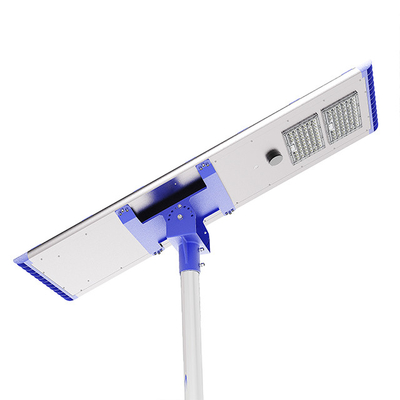

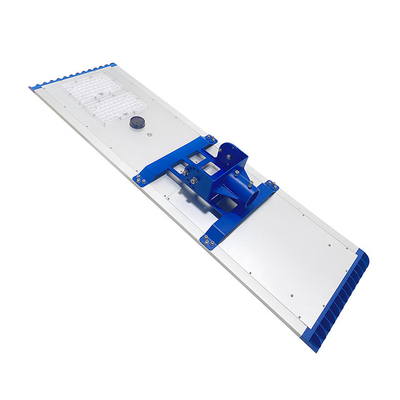

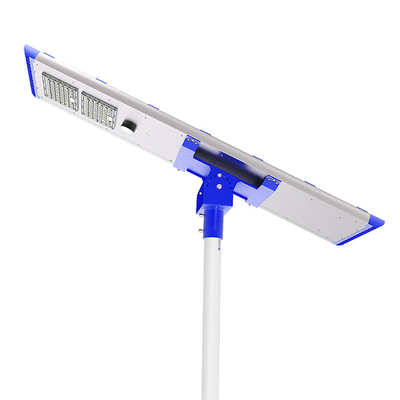

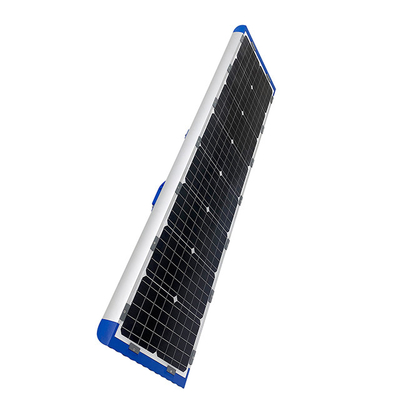

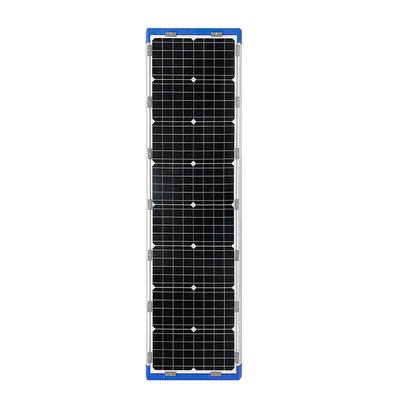

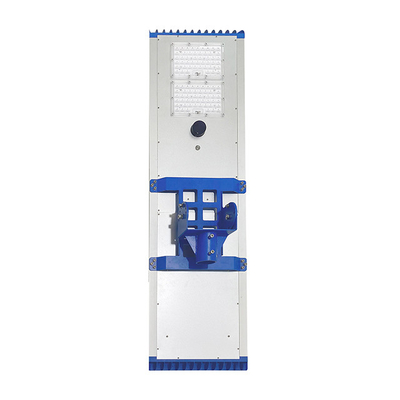

Integrated Monocrystalline Solar LED Street Light MPPT Motion Sensor
100W Integrated Mono Crystalline Solar LED Street Light MPPT Motion Sensor
Features:
• Integrated design, all in one design, wireless for fitting, the installation is very convenient.
• Mono-crystalline solar panel, LED lighting source, lithium battery,intelligent controller integrated Aluminum Alloy shell.
• Adopt lithium iron phosphate battery, fight the high temperature, keep long lifespan.
• When the products with optically controlled microwave induction infrared sensor, automatic adjustment of intelligent power on rainy days, extend rainy days.
• Adopt alloy material as the main structure,with good rust prevention,corrosion protection.
• The wireless remote control setting device, adjustable lighting time, lighting power, automatically detection of battery voltage, read light power parameters, a human body induction function, as long as people go through when full power lighting, no automatic power down alf, restore energy saving mode.
• Time control + motion sensor smart control
• Brightness of the proximity sensor registers walker: Full power 100%; Walker left 10 seconds transform into smart mode; Brightness of Smart mode: 10%
• If other brightness request, lighting period & brightness programmable.
Product descreption:
Installation method:
Application cases:
Installation instructions:
1. Switch off the Switch button
2. Adjust the right angle of the lamp
3. Connect the lamp adapter to Pole
4. Electrical wiring connection if Hybrid kit needed
5. Tight the adapter screws
6. Switch ON
Oprations:
• Operation Ambient Temperature -25 to +50°C, Relative Humidity 20~90%
• Input Voltage 100~240V AC, 50/60Hz
• Storage Ambient Temperature -40 to +55°C, Relative Humidity 5~95%
• Mounting Height : Suitable for 3~6m height
(Kindly reminder: All installation steps must handl by professional electrician)
Specification:
| Part NO | |||
| Parameter | LY-ST30100PW | LY-ST30100WW | LY-ST30100NW |
| Battery | 18650 lithium battery 12V 100 Ah | ||
| Beam angle | 150x65° | 150x65° | 150x65° |
| Pole diameter | 60MM | 60MM | 60MM |
| Light output | 100W | 100W | 100W |
| Luminous flux(lm) | 16800 | 16500 | 16500 |
| Chip Brand | LUXEON 5050 | LUXEON 5050 | LUXEON 5050 |
| Solar panel | 100W /18V mono-crystalline Silicon | ||
| CRI | ＞70 | ||
| Color Temperature | Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K | ||
| Operating time | Full power >24 hours, Smart mode 7-10 nights | ||
| Control Mode | Light Control + Motion Sensor | ||
| Material | Die Casting Aluminum | ||
| Luminous efficiency(lm/w) | ＞165 | ||
| Lifespan(hrs) | ＞50000 | ||
| IP Rating | IP66 | ||
| Installation height | 4~8M | ||
| Size(mm) | 1350x380x180 | 1350x380x180 | 1350x380x180 |
| Net Weigh(kg) | 17 | 17 | 17 |
| Package Size(mm) | 1395x430x210 | 1395x430x210 | 1395x430x210 |
| Package Quantity(Pcs) | 1 | 1 | 1 |
| Gross Weigh(kg) | 20 | 20 | 20 |
Distribution Curve:
Applications:
- Parking lot
- Park
- Patio
- Rural road
- Landscape
- Walkway
- Path
Package info:
Carton Size: 1395mm×210mm×430mm
Actual pictures:
