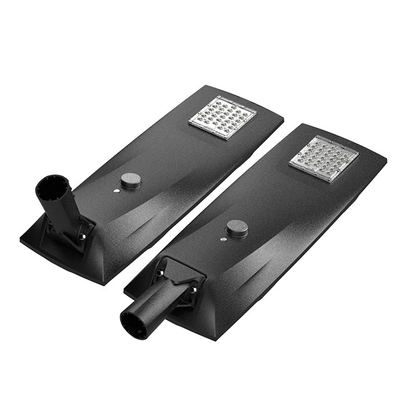

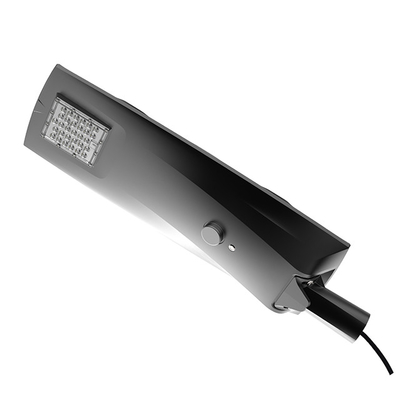

All In One Luxeon 5050 SMD LED Street Light C TICK CE RoHS Approved

All In One Luxeon 5050 SMD LED Street Light C TICK CE RoHS Approved

Luxeon 5050 High efficiency 180lm/w smd all in one solar led street light LED Street Light with C TICK CE RoHS Approved

Integrated Solar Led Street Light Of Specifications:

	Product Name	50W Solar Led Street Light
	Battery	18650 lithium battery 12V 50Ah
	Beam angle	150x65°
	Solar panel	50W /18V monocrystalline silicon (Life span of 25 years, 80% efficiency)
	Operating time	>12 hours ,Intelligent mode 3-4 days (Affected by local use environment and sunlight)
	Control Mode	Time control + light sensor control + motion sensor control
	Optional	AC/DC Hybrid System
	IP Rating / IK	IP66 / IK10
	Installation height(m)	4-8m

Solar Led Street Lighting Features:

1> The intergration of design ,no cable,the installation is very convenient.

2> 50W /18V Mono-crystalline solar panel, with a higher conversion efficiency, up to 18%,and life span of 25 years,

3> It used 18650 12V 50Ah lithium iron phosphate battery,fight the high temperature,keep long life.vxc

4> Using the most advanced MPPT Tracking control technology to improve system efficiency and reduce costs;

5> It has functions of light control, time control, dimming, intelligent power saving+morning light;

6> Solar controller built-in lighting protection module;

7> Using ternary lithium battery technology, the battery capacity is high;

8> 365 days uninterrupted power

9> Three contorl model: Time control+light sesor control+motion sensor control

Time control:It can be divided into 5 time periods, which is more humane and energy-saving;

Light sensor control: When the evening comes,when the solar panel battery voltage is lower than 3V, the lamp will automatically turn on;

Motion Sensor control: A motion-Sensing energy-saving mode, when a moving object is sensed, the lamp will have 100% brightness;when no moving object is sensed, the lamp will be in a low-power and energy-saving state,with a brightness of 10%-100%(can be set)

10> AC/DC Hybrid Solar Power System(Need for Customization)

Features a DC detection function. If DC available, the system will automatically switch to lithium battery supply when the battery voltage rise to the DC switching point; the system will automatically switch to DC power supply when the battery voltage falls to the DC switching point; if DC powers off, the system will shut off output when the battery reaches the over-discharge point after continuous discharging.

All In One Solar Led Street Light Application:

Suitable for the street lighting; sidewalk lighting;roadway lighting; fence lighting; pathway lighting; campus lighting; park lighting; garden lighting;ramp lighting;boat dock lighting; remote area lighting;farm & ranch lighting.

Operation and Storage Condition

1.Operation Ambient Temperature -10 to +45°C, Relative Humidity 20~90%

2.Storage Ambient Temperature -10 to +35°C, Relative Humidity 5~95%

3.Mounting Height: Suitable for 4~6m height

Warning

1. Do not install in high temperature, closed and non-ventilated areas;

2. The installation location should not be installed under the tree or the place where there are obstructions. The solar panel must be exposed to sunlight in all directions;

3. When the product is stored in the warehouse, it needs to be charged and discharged every 3 months;

4. When the product is faulty, you need to find a professional to deal with it;

5. Eliminate scrapped products, must be handed over to the relevant departments for Centralized processing.

FAQ

- How to proceed an order for led light?
A: Contact our sales representatives by email, skype or making a call, we will soon send you confirm with you for your detailed requirements. Then we send you PI for your approval and payment. You can choose wire transfer, PayPal, west union to send us payment.

- Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

- Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available

- How long will be the lead time?
A. This will be subject to your order quantity. Normally, below 5,000pcs, we will deliver within 15 working days. For large
quantity, please confirm with your order.

- Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.

- How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.

- How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
