IP65 led lighting module LED flood light 150Watt for area lighting fixture.

large.img.alt
small.img.alt small.img.alt

Large Image :  IP65 led lighting module LED flood light 150Watt for area lighting fixture.

Product Details:

Place of Origin: China
Brand Name: Leyond
Certification: CE,ROHS,ISO9001:2008
Model Number: LY-ST15030XX

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negociatable
Packaging Details: Carton box package
Delivery Time: 7-15 working days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 5000pcs/month
Detailed Product Description
Led Module: 3x50W Bridgelux Chip: Mean Well Driver
Beam Angle: 24/38/60/90 Degree IP Rating: IP65
Light Output Efficiency: 130lm/w Warranty: 5 Years
High Light:

led lighting module

,

led modular

IP65 LED Flood light 150Watt for area lighting fixture.

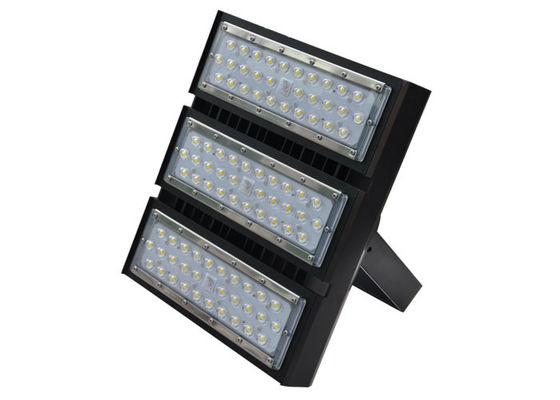

1. Outlook

IP65 led lighting module LED flood light 150Watt for area lighting fixture. 0

IP65 led lighting module LED flood light 150Watt for area lighting fixture. 1

 2. Application


 1) It is applicable to playground lighting ,warehouse lighting, plaza lighting, tunnel lighting and so on.
 2)New Installation or Replace the traditional High Pressure Sodium Lamp, High Pressure Mercury Lamp, and Metal Halide Street Lamps. Etc.



3. Features


 1. Adoption Lepower exclusive ZAG Lens with light transmittance up to 98%
 2. Perfect Light Distribution Solution:Adoption of integrated peanut shell optic lens, enhance the      brightness and illumination uniformity.
 3. High luminous efficiency, Whole lamp output light effiency >130LM/W.
 4. high quality power supply, input voltage 100-277V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.
 5. For the traditional light source such as the High Pressure Sodium, if the voltage fluctuation ±7%, the brightness and lifetime will be reduced very fast, but for BBE LED, even the voltage fluctuation is ±20%, the brightness and lifetime will not be influenced at all;Over Current, Over Voltage, Over Heat, Thunder Protection
 6.  Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body;
 7. The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood, observers will feel more comfortable.



4. Distribution Curve

IP65 led lighting module LED flood light 150Watt for area lighting fixture. 2

5. MTBF Curve


The MTBF Curve is only for information when DRD-W4KLKMB1P LEDs are Operating at 25degC and
3250mA,Which is 8 hours on time per day . Luminous Intensity of the type LEDs would drop to round 85.95% when
operating to 50000 hours:

IP65 led lighting module LED flood light 150Watt for area lighting fixture. 3



6. Operation and Storage Condition


Operation Ambient Temperature -30 to +50°C, Relative Humidity 20~90%
Input Voltage 100~240V AC, 50/60Hz
Storage Ambient Temperature -30 to +85°C, Relative Humidity 5~95%
Mounting Height : Suitable for 5~12m height



7. Assembly and Installation
Assembly-Electricity

IP65 led lighting module LED flood light 150Watt for area lighting fixture. 4



8. Warning


  Please handle the product with care when open the package.
  Do Not Open the Light Engine
  Do Not Soak the Floodlight into Water
  Do Not Light up the System Without Grounding
  Do Not Use Dimmer
  If the new LED down light is found damaged, please keep the original package and contact us.
  In order to ensure the product work properly, please use the power supply within indicating voltage range.
  Whatever the case, lamps can not be covered by heat resistant gasket or similar materials.



9. Project Case



IP65 led lighting module LED flood light 150Watt for area lighting fixture. 5

IP65 led lighting module LED flood light 150Watt for area lighting fixture. 6
