Waterproof IP66 150W LED HighBay Light for Outside Pathway / Stadium

Certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
Customer Reviews
I am very satisfied with your company in terms of quality.

—— Mr Frank

Hello Ada; I wish you have enoyed your holidays. Yes we tested the sample lamp, and we are very satisfy with the quality.

—— Ms.Valentina

I'm Online Chat Now

Waterproof IP66 150W LED HighBay Light for Outside Pathway / Stadium

Waterproof IP66 150W LED HighBay Light for Outside Pathway / Stadium
Waterproof IP66 150W LED HighBay Light for Outside Pathway / Stadium Waterproof IP66 150W LED HighBay Light for Outside Pathway / Stadium Waterproof IP66 150W LED HighBay Light for Outside Pathway / Stadium Waterproof IP66 150W LED HighBay Light for Outside Pathway / Stadium

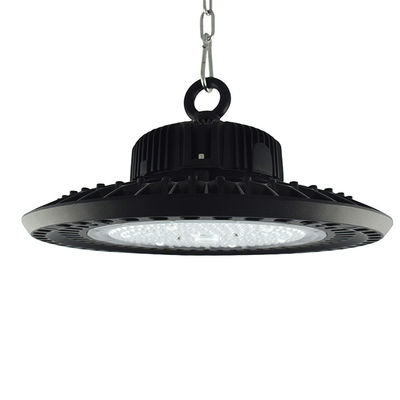

Large Image :  Waterproof IP66 150W LED HighBay Light for Outside Pathway / Stadium

Product Details:

Place of Origin: China
Brand Name: Leyond
Certification: CE,ROHS,ISO9001:2008
Model Number: LY-HB108150XX

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 7-15 working days
Payment Terms: T/T, Western Union or Paypal
Supply Ability: 8000pcs/month
Detailed Product Description
LED Luminous Efficiency: >=90lm/w Bridgelux Chip: Meanwell Driver
High Power LED HighBay Light: 150W Power Factor: >=0.95
Power Efficiency: 85% Beam Angle: 45/90/120
Warranty: 5 Years
High Light:

led high bay lamp

,

high bay led lighting

Waterproof IP66 150 W LED HighBay Light for Outside Pathway / Stadium



Features:

  • Up to 80% Energy-saving compared to metal halide lamp, mercury-free and 100% recyclable, energy saving and environmental protection
  • Isolated internal led driver, easy installation, safety guaranteed
  • High PF value 0.9 above and THD less 15% for decrease of electricity loss
  • Up to120LM/W high light efficacy, 50000h above lifespan, 5 Years warranty, cost effective
  • Power supply key components adopt world brand,No flicker, no delay, Instant on/off
  • Designed for hook type, can be directly replaced is used to quick and easy
  • installation to minimize retrofit and maintenance costs
  • Small size, less weight and durable is the best choice for warehouses, stadiums, exhibition spaces, high ceiling lights.

Waterproof IP66 150W LED HighBay Light for Outside Pathway / Stadium 0

Using imported chip, LED encapsulation structure optimization, to achieve low light failure, high photosynthetic efficiency, energy conservation and environmental protection advantages.



Specification Optical:



Par NO

Parameter

LY-HB39150WW LY-HB39150NW LY-HB39150PW
Input voltage AC100V240V 50/60HZ
Input Current AC 0.72A / AC 220V
Sysem consumption(W) ≤152 ≤152 ≤152
Light Fixture Luminance (lm) 16000 17500 18000
LED type LUXEON 3030 LUXEON 3030 LUXEON 3030
LED QTY 210 210 210
System Efficiency 90% 90% 90%
Driver MEAN WELL HBG-160 / OTHER
Beam Angle 6/90°/120° 6/90°/120° 6/90°/120°
CRI 70 70 70
Color Temperature(CREE) 2700-3200k 4000-4500k 5000-6500k
Meterial Magnesium Aluminum + PC cover
Lifespan(hrs) 50000
IP Rating IP65
Product Size(mm) Φ340X169 Φ340X169 Φ340X169
NET Weight(KG) 4.5 4.5 4.5

Application:



Widely used in Warehouse,Industrial workshops,Logistics centers,Exhibition halls,Stadiums,Docks,Golf courses,Airport,Highway toll stations,supermarkets Light engineering.

Waterproof IP66 150W LED HighBay Light for Outside Pathway / Stadium 1

Package:

Waterproof IP66 150W LED HighBay Light for Outside Pathway / Stadium 2

Assembly and Installation:

Waterproof IP66 150W LED HighBay Light for Outside Pathway / Stadium 3

Our Services:
1.Factory price, large monthly output
2. 5 years warranty, high quality guarantee
3. professional Export service, easy to communicate and save your much time
4.Timely delivery, let you win biggest markets advantage
5.Satisfied After-sales service, to be your reliable supplier
6. any question will be get answer within 12 hours
7. R & D team, welcoem OEM and ODM order



Factory Environment:

Shenzhen LEYOND LIGHTING Co., Ltd. is a high-tech corporation founded in 2005, which is the wholy-owned subsidiary of LIYANG Electronic (HK) limited. We concentrateds and specializes in developing and producing high power LED lighting. Our major products include LED Floodlight, COB Led Spot Light&Ceiling Light,LED Hight Bay light and LED Billboard Light etc.Meantime,We also can supply professional lighting solution and OEM service based on customs’ requirement.



FAQ:

Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 7-10 days for bulk order.

Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.

Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution including recall according to real situation.
