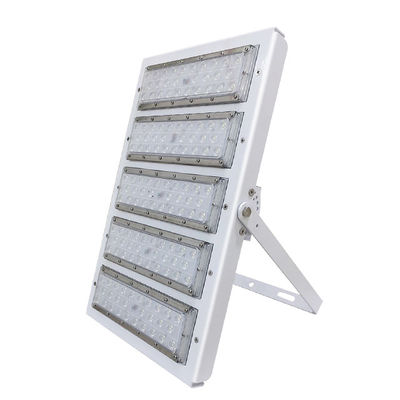

High power 250W LED flood light led flood lamps outdoor lighting fixture.

Certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
Customer Reviews
I am very satisfied with your company in terms of quality.

—— Mr Frank

Hello Ada; I wish you have enoyed your holidays. Yes we tested the sample lamp, and we are very satisfy with the quality.

—— Ms.Valentina

I'm Online Chat Now

High power 250W LED flood light led flood lamps outdoor lighting fixture.

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  High power 250W LED flood light led flood lamps outdoor lighting fixture.

Product Details:

Place of Origin: China
Brand Name: Leyond
Certification: CE, ROHS and ISO9001:2008
Model Number: LY-ST24250XX

Payment & Shipping Terms:

Minimum Order Quantity: 2pcs
Price: Negociatable
Packaging Details: Carton box package
Delivery Time: 5-15 working day
Payment Terms: T/T, Western Union or Paypal
Supply Ability: 10000pcs/month
Detailed Product Description
Product Name: Modular LED Flood Light 250W LED Chips: Lumileds Luxeon 5050
LED Driver: Meanwell Driver Voltage: 100-240V
CRI: >80 Materials: Aluminum Housing+PC Cover
Whole Lamp Efficiency: >160Lm/W IP Rating: IP66
High Light:

PMMA Modular LED Flood Light

,

Luxeon 5050 LED Flood Light

,

IP66 Led Security Flood Light

High power 250W LED flood light led flood lamps outdoor lighting fixture.



Outlook:

High power 250W LED flood light led flood lamps outdoor lighting fixture. 0



Application:

1. It is applicable to playground lighting ,warehouse lighting, plaza lighting, tunnel lighting and so on.

2. New Installation or Replace the traditional High Pressure Sodium Lamp, High Pressure Mercury Lamp, and Metal Halide Street Lamps. Etc.



Features:

1. Adoption LEYOND exclusive Lens with light transmittance up to 98%.

2. Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.

3. There are 25°,60°, 90° beam angle options for the Lens.

4. Scientifically-designed heat dissipater with much better cooling effect.

5. High luminous efficiency, Whole lamp output light effiency >160LM/W.

6. High quality power supply, input voltage 100-240V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.

7. For the traditional light source such as the High Pressure Sodium, if the voltage fluctuation ±7%, the brightness and lifetime will be reduced very fast, but for LED, even the voltage fluctuation is ±20%, the brightness and lifetime will not be influenced at all;Over Current, Over Voltage, Over Heat, Thunder Protection.

8. Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.



Specifications:



Par NO

Parameter

LY-ST24250PW LY-ST24250NW LY-ST24250WW
Input voltage AC100V~240V 50/60HZ
System consumption(W) 250 250 250
Luminous flux(lm) 40000 37000 33500
Chip Brand

LUXEON 5050

LEYOND 5050

LUXEON 5050

LEYOND 5050

LUXEON 5050

LEYOND 5050

Beam Angle 25°,60°, 90° 25°,60°, 90° 25°,60°, 90°
CRI >80
Color Temperature WW:2700-3200K / NW:4000-4500K / PW:5000-6500K
LED Driver MEAN WELL ELG-240 / XLG-240H
Luminous efficiency(lm/w) >160
Lifespan(hrs) >50000
IP Rating IP66
Dimmable YES&NO YES&NO YES&NO
Size(mm) 320*504*76 320*504*76 320*504*76
Net Weigh(kg) 6.4 6.4 6.4
Package Size(mm) 608*390*135 608*390*135 608*390*135
Package Quantity(Pcs) 1 1 1
Gross Weigh(kg) 7.4 7.4 7.4



Distribution Curve:

High power 250W LED flood light led flood lamps outdoor lighting fixture. 1

Photometry(AAI Figure):

High power 250W LED flood light led flood lamps outdoor lighting fixture. 2

Operation and Storage Condition:

1. Operation Ambient Temperature -40 to +50°C, Relative Humidity 20~90%

2. Input Voltage 100~240V AC, 50/60Hz

3. Storage Ambient Temperature -40 to +65°C, Relative Humidity 5~95%

4. Mounting Height : Suitable for 8~25m height



About Us:

Shenzhen Leyond Lighting Co.,Ltd. was founded in 2005. who is a leading provider of outdoor lighting fixtures with high technology and quality. We are carry out enterprise culture of the “To customer demand as the guide,keep the leading technology, to create maximum value for customers”, and the spirit of “Humility self-discipline, perseverance, go all out” is our permanent pursuit. Leyond is striving to achieve the goal of “to be the best LED lighting supplier” and to“ build Leyond brand”.

Leyond is the Top 3 LED street light exporter from China,Our major products include Led Street Lights, Led Flood Light,LED Stadium Light,Led Canopy lights,ect,All design and making by ourself. According to customers’ requirement we can supply professional lighting solution not only design but also in production. Leyond operates strictly based on ISO 9001:2000, the quality management system from purchasing to designing to manufacturing.

High power 250W LED flood light led flood lamps outdoor lighting fixture. 3

OUR SERVICE

Short Delivery Time More than 10 years experience in outdoor lighting fixtures production

Professional technique and service

Main Projects:
High power 250W LED flood light led flood lamps outdoor lighting fixture. 4
High power 250W LED flood light led flood lamps outdoor lighting fixture. 5
