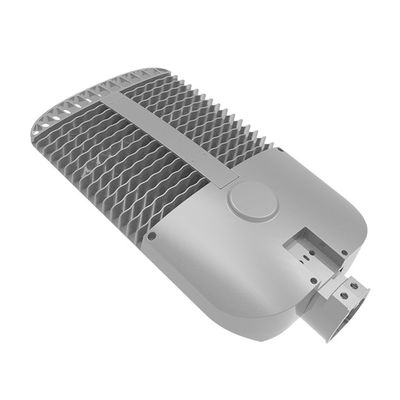

High Efficiency IP66 Outdoor LED Street Lights 120W For Roadway

High Efficiency IP66 Outdoor LED Street Lights 120W For Roadway
High Efficiency IP66 Outdoor LED Street Lights 120W For Roadway High Efficiency IP66 Outdoor LED Street Lights 120W For Roadway High Efficiency IP66 Outdoor LED Street Lights 120W For Roadway High Efficiency IP66 Outdoor LED Street Lights 120W For Roadway

Large Image :  High Efficiency IP66 Outdoor LED Street Lights 120W For Roadway

Product Details:

Place of Origin: China
Brand Name: Leyond
Certification: CE,ROHS&ISO
Model Number: LY-ST10120XX

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: carton box package
Delivery Time: 7-15 working days
Payment Terms: T/T, Western Union or Paypal
Supply Ability: 8000pcs/month
Detailed Product Description
Power: 120W 100-240V AC 50/60HZ Power Factor: >=0.95
LED Luminous Efficiency: >= 160lm/W CRI: >70
Beam Angle: 150*65 Driver: Meanwell CLG/HLG Driver
High Light:

led outdoor flood lights

,

commercial outdoor led flood light fixtures

High Efficiency IP66 Outdoor LED Street Lights 120W For Roadway



Features:

  • Absolutely unique mold,make your lighting special and fantastic.
  • Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
  • Anti-glare and uniform light level to avoid any visual discomfort.
  • high quality power supply, input voltage 100-277V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.
  • Adopting LUXEON 5050 led light sources and LEYOND lens technology, 8% light efficiency higher than the same type lights in the market, with higher light transmittance up to 98%.
  • Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds.Adopting the popular CHEM modular design, effectively reduce the following maintenance cost.
  • Low energy consumption,matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current, over-voltage, lightning, high temperature, which fully ensure long life span and high stability of the products.
  • Durable lights with long life span up to 50000 hours; No need frequent replacements of lights and regular maintenance.
  • Green environmental protection, no UV light and infrared radiation, no mercury pollution.
  • Nice appearance and non-fouling properties, Protection class IP66.
  • Work without strobe, fast transient responseA wide range of working voltage.

Specification:

Par NO

Parameter



LY-ST10120PW



LY- ST10120WW



LY- ST10120NW

Inptut voltage AC100V~240V 50/60HZ / DC12-24V
Sysem consumption(W) 120 120 120
Luminous flux(lm) 19800 17500 19100
Chip Brand Lumileds 5050 Lumileds 5050 Lumileds 5050
Beam Angle 150*65 DEG 150*65 DEG 150*65 DEG
CRI >75
Color Temperature Warm white:3000K / Neutral white:4000K / Pure white:5000K / Cool white: 5700K
LED Driver MEAN WELL DRIVER
Luminous efficiency(lm/w) >165
Lifespan(hrs) >50000
IP Rating IP67
Dimmable YES&NO YES&NO YES&NO
Size(mm) 542x290x105 542x290x105 542x290x105
Net Weigh(kg) 5.5 2.8 5.5
Package Size(mm) 585*320*160 585*320*160 585*320*160
Package Quantity(Pcs) 1 1 1
Gross Weigh(kg) 6.6 6.5 6.5

Distribution Curve:(120w)

High Lumens 160lm/W Waterproof LED Street Lighting 50W IP66 60Hz With Aluminum Material 3

package:

Inner box Size: 585mm×320mm×160mm
Outer box Size: 600mm×335mm×360mm
(2 PCS LED Street Light)

High Lumens 160lm/W Waterproof LED Street Lighting 50W IP66 60Hz With Aluminum Material 5

Assembly –Electricity:

80Watt  IP66 Waterproof High Brightness  LED Street Lights 2700k / 4000k / 5000k For Roadway 2

Optional function:

1)Daylight automatically controlling ON / OFF

Turn-On Light Level: 10 Lux or at customer’s request
Turn-Off Light Level: 50 Lux or at customer’s request
Turn-On Time Delay: 10-15s
Turn-Off Time Delay: 10-15s
2) Zigbee remote communication controlling
ZIGBEE controller conforms to IEEE802.15.4 protocol of ZIGBEE
communication standard. It has the advantages of remote communication,
strong anti-interference capability and flexible networking, realizing
peer-to-peer and peer-to-multi peer transparent data transmission among
devices, and constructing star network or mesh network topology.
ZIGBEE controller consists of a current and voltage measurement
circuit, which collect real-time load performance and power consumption of
street lig
Warning
l Do Not Use Other Devices for LED Street Light ,Installation Such as
Stabilizer, Regulator …etc
l Do Not Open the Light Engine
l Do Not Soak the LED Street Light into Water
l Do Not Light up the System Without Grounding
l 1-10V dimming need to be customized

Aplication:
Suitable for the highways,urban roads and secondary roads,stadiums,sidewalks,residential areas,industrial areas,squares,parks,schools,villas,gardens and other places.
