85lm - 95lm / W Led Highbay Light 100w / Outdoor Led Highbay Lamp

Certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
Customer Reviews
I am very satisfied with your company in terms of quality.

—— Mr Frank

Hello Ada; I wish you have enoyed your holidays. Yes we tested the sample lamp, and we are very satisfy with the quality.

—— Ms.Valentina

I'm Online Chat Now

85lm - 95lm / W Led Highbay Light 100w / Outdoor Led Highbay Lamp

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  85lm - 95lm / W Led Highbay Light 100w / Outdoor Led Highbay Lamp

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Leyond Lighting
Certification: CE RoHS
Model Number: LY-HB65100PW

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: USD70-USD130/pc
Packaging Details: 1 pcs per carton, strong export carton for export shipping
Delivery Time: 7-10 working days after payment confirmed
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 10000pcs per month
Detailed Product Description
LED Type: Bridgelux Chip 3030EMC LED LED Driver: Meanwell HLG Series
Warranty: 5 Years Without Worries CRI: Ra80
Input Voltage: AC100-240V, PF>0.95 Color: Warm Whtie, Natural White, Pure White
Beam Angle: 25/45degree Powers: 100w
Lumens: 9000
High Light:

led high bay lamps

,

led high bay lamp



85lm - 95lm / W Led Highbay Light 100w / Outdoor Led Highbay Lamp



Specification:




Parameter  Par NO LY-HB65100PW LY-HB65100WW LY-HB65100NW
Inptut voltage AC100V~240V      50/60HZ
Sysem consumption(W) <103 <103 <103
Luminous efficiency(lm/w) 88 LM/W 80 LM/W 84 LM/W
Luminous(lm) 8900 8200 68500
LED quantity(pcs) 3030 / 100PCS 3030 / 100PCS 3030 / 100PCS
Beam Angle 25°/45° 25°/45° 25°/45°
CRI >80 >80 >80
Color Temperature(CREE) 5000-5500k 2700-3200k 4000-4500k
Meterial Aluminum+Glass
Driver HLG-120H
Lifespan(hrs) >50000
Size of pack(mm) 405*405*380 405*405*380 405*405*380
HighBay Size(mm) Φ357x362 Φ357x362 Φ357x362
Net weight(KG) 4.6 4.6 4.6
Gross weight(KG) 5.8 5.8 5.8




Features:



• 11 flexible positions makes project angle can be adjusted within 180 °.

• Professional heat dissipation structure design. Modular heatsink with perfect structure and inside airflow channels maxim the 3D heat dissipation.

• Rivet the heatsink body closely, minimize the heat resistance, greatly improve the heat dissipation effect, and it is much lighter compared with similar products.

• Waterproof  design, eliminating mist, avoiding condensation,improving quality,extending the life span.

• Flake designed high-purity aluminum reflector angle scales , to adapt to different situations.There are 25°,45°,beam angle options for the flake designed reflector.Reflective rate could reach up to 95%.

• Over Current, Over Voltage, Over Heat, Thunder Protection

• Choice of Correlated Color Temperatures

• Long lifespan for LED 50,000 hrs

• 100% Recycle, No Pollution, and UV, IR

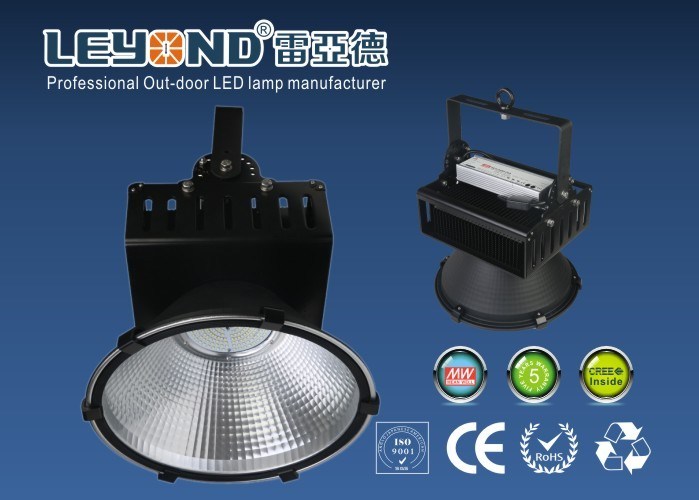

Outlook:



85lm - 95lm / W Led Highbay Light 100w / Outdoor Led Highbay Lamp 0

Photometry:



85lm - 95lm / W Led Highbay Light 100w / Outdoor Led Highbay Lamp 1



Operation and Storage Condition:



• Operation Ambient Temperature -25 to +55°C, Relative Humidity 20~90%



• Input Voltage 100-240V AC, 50/60Hz



• Storage Ambient Temperature -25to +60°C, Relative Humidity 5~95%



• Mounting Height : Suitable for 6~12m height



Package:



85lm - 95lm / W Led Highbay Light 100w / Outdoor Led Highbay Lamp 2



Warning:



• Do Not Use Other Devices for LED high bay light Installation Such as Stabilizer, Regulator …etc

• Do Not Open the Light Engine

• Do Not Soak the high bay light into Water

• Do Not Light up the System Without Grounding

• Do Not Use Dimmer



Apllications:



 Factory/ Gym/Square/Airport/warehouse…



Terms&Conditions:



1) T/T(30% T/T in advance, the balance paid before shipment.), PayPal, Western Union.

2) Minimum Order:.1pcs.

3) Samples can be available within 5 working days.

4) Lead time:7-10 working days for 100 to 500pcs, about 15 working days for 500 to 2000pcs.

5) Shipping freight is quoted under your requests.

6) Price term: EXW shenzhen

7) Discounts are offered based on order quantities.

8) Packaging: Neutral package, otherwise, can be customized according to customer requirements of Logo, Brand and etc.

9) OEM design and R & D production is available.
