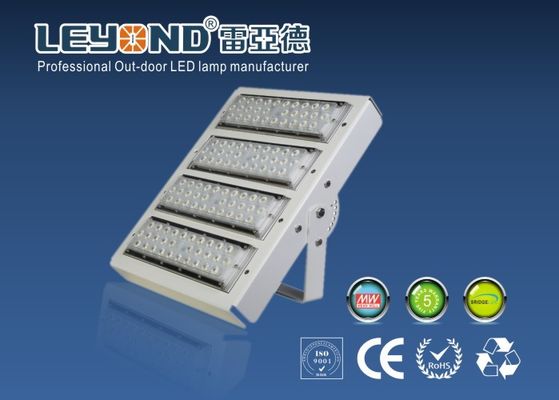

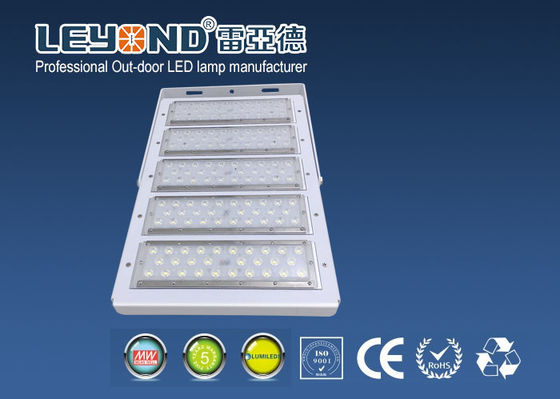

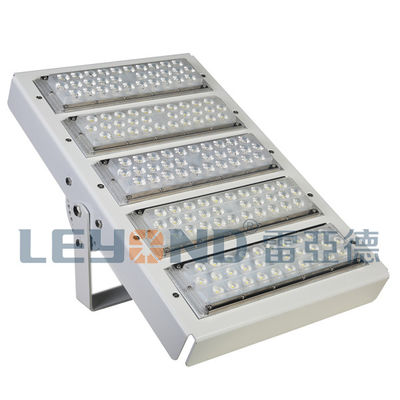

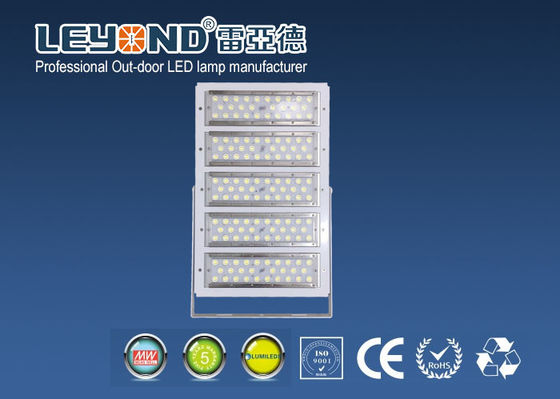

Outdoor IP66 High Power Modular LED Flood Light 200W For Sport Ground Lighting CRI 80
Specifications:
| Basic Information |
| Part No. | LY-ST23200-XX |
| Power | 200w |
| Voltage | 100-240V AC 50/60HZ |
| Chips | Lumileds 240pcs |
| Driver | Meanwell HLG |
| Material | Alluminum+ PC |
| Color | White/Black |
| IP Rate | IP66 |
| CRI | 70 |
| PF | >0.97 |
| Beam Angle | 24/36/60/90 |
| CCT(K) | 2700-3300K(WW).4000-4500K(PW),6000-6500K(CW) |
| Certification | CE,EMC, LVD, RoHS |
| Lifespan | 50000hrs |
| Warranty | 5 Years |
| Working Environment |
| Working Temperature | -30-50 ℃ |
| Relative Humidity | 20-90% |
| Store Temperature | -30-80 ℃ |
| Electronic |
| Blue | Neutral |
| Browm |
Line |
| Yeallow-Green | Ground |
| Application |
|
Application Area |
1. Warehouse lighting, Industrial lighting 2. Parking Lot Lighting, Garage Lighting 3. Airport, Train Station Lighting 4. Tunnel Lighting
|
| Installation Height | Recommend 5-12M height |
Pictures:
Features:
• Adoption LEYOND exclusive Lens with light transmittance up to 98%.
• Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
• There are 24°, 36°,60°, 90° beam angle options for the Lens.
• Scientifically-designed heat dissipater with much better cooling effect.
• High luminous efficiency, Whole lamp output light effiency >130LM/W.
• High quality power supply, input voltage 100-240V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.
• For the traditional light source such as the High Pressure Sodium, if the voltage fluctuation ±7%, the brightness and lifetime will be reduced very fast, but for BBE LED, even the voltage fluctuation is ±20%, the brightness and lifetime will not be influenced at all;Over Current, Over Voltage, Over Heat, Thunder Protection.
• Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.
Quality Control
100% of the lamps will be tested and keep lighting for 24 hours to test its quality reliability
and we will also test its temperature after 24 hours’ lighting. Then after it is cool we again test
100% of the lamps to see if it still work well . Each lamp should pass all these QC procedures
before shipping to customer.
Distribution Curve:
24 Deg 36 Deg
60 Deg 90 Deg
Application:
• It is applicable to playground lighting ,warehouse lighting, plaza lighting, tunnel lighting and so on.
• New Installation or Replace the traditional High Pressure Sodium Lamp, High Pressure Mercury Lamp, and Metal Halide Street Lamps. Etc.
• Below is the feedback picture from our client.
