Outside Solar LED Street Lighting Fixture IP65 AC100-240V DC12 / 24V

Outside Solar LED Street Lighting Fixture IP65 AC100-240V DC12 / 24V
Outside Solar LED Street Lighting Fixture IP65 AC100-240V DC12 / 24V Outside Solar LED Street Lighting Fixture IP65 AC100-240V DC12 / 24V Outside Solar LED Street Lighting Fixture IP65 AC100-240V DC12 / 24V

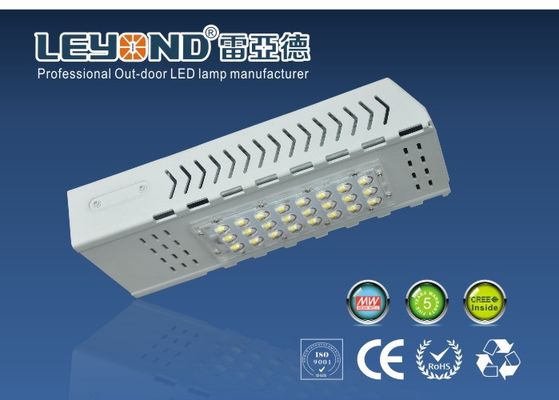

Large Image :  Outside Solar LED Street Lighting Fixture IP65 AC100-240V DC12 / 24V

Product Details:

Place of Origin: Shenzhen, China
Brand Name: LEDYOND
Certification: CE RoHS
Model Number: LY-ST12040-XX

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: $30 usd/pcs
Packaging Details: Standard export carton 1pcs/carton,WG:8.8kg, Cartion Size:64*40*16cm
Delivery Time: 7-10 work days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000 pcs/month
Detailed Product Description
Material: Aluminum And PC LED Source: Bridgelux Chip
Watt: 40W Luminous: 5000lm
Driver: DC 12-24V Driver Beam Angle: 150*70 Degree
Item: Solar Street Light CCT: WW/NW/PW
High Light:

led roadway lighting

,

led street lamp

Outside Solar LED Street Lighting Fixture IP65 AC100-240V DC12 / 24V



Product Description



1) Aluminum + PC. Anti-glare lens.
2) Bridgelux chip. High luminous efficiency, 30W Luminous flux 4285lm;
3) Whole lamp output light efficiency>150lm/W.
4) All leds connected in series,even one led dies out,other leds will not be affected;
5) Light facula is very uniform, no light pollution and no glare;
6) Comes with ambient light on the secondary road,the lux of secondary road is half of the main road.
7) IP66 waterproof design.
8) Modular structure, easy to do replacement and maintaining.
9) Module and whole lamp can be chosen.


Application:



Applicable to all types of road lighting: expressway, trunk road, main road, large public buildings or commercial center road, secondary road, branch, residential roads and sidewalks, and can also be used for general building, square, freight yard, landscape and other places of lighting.



New installation or replace the traditional high pressure sodium lamp, high pressure mercury lamp, and metal halide street lamps. etc.



Technical Datas:




Optical
LED Luminance >5000lm
Light Fixture Luminance >4800lm
CCT 6000±500K
CRI >72
LED Bridgelux chips
Electrical
Input Voltage 100~240V AC, 50/60Hz DC12-24V
Power Consumption ≦45W (of Total System)
Power Factor ≧0.9
Power Efficiency >90%
EMI Grade EMI Class A
Protection Over Current/Over Voltage/Thunder Protection
Luminance Efficacy

>120lm/W

Mechanical and System
IP Level IP65
Dimension 50 X 320 X 45 mm
Net Weight 3.5 Kg
Heat Solution Convection



Photometry:



Bat Wing light distribution curve

150W distribution.jpg.




Operation and Storage Condition:



• Operation Ambient Temperature -30 to +60°C, Relative Humidity 20~90%

• Input Voltage 100~240V AC, 50/60Hz

• Storage Ambient Temperature -40 to +85°C, Relative Humidity 5~95%

• Mounting Height : Suitable for 7-8M height



Our Services:
1.Factory price, large monthly output
2. 3 years warranty, high quality guarantee
3. professional Export service, easy to communicate and save your much time
4.Timely delivery, let you win biggest markets advantage
5.Satisfied After-sales service, to be your reliable supplier
6. any question will be get answer within 12 hours
7. R & D team, welcoem OEM and ODM order



Factory Environment:



Shenzhen LEYOND LIGHTING Co., Ltd. is a high-tech corporation founded in 2005, which is the wholy-owned subsidiary of LIYANG Electronic (HK) limited. We concentrateds and specializes in developing and producing high power LED lighting. Our major products include LED Floodlight, COB Led Spot Light&Ceiling Light,LED Hight Bay light and LED Billboard Light etc.Meantime,We also can supply professional lighting solution and OEM service based on customs’ requirement.



FAQ:



1. What is your price?
Based on your quantity and specification requirement, reasonable and affordable price.

2. How many years warratny?

5 years warranty, 50000 hours lifespan.

3. What is the payment term?

For sample order, we can accept T/T, Paypal, West Union, 100% in advance.

For bulk order, 30% deposit in advance by T/T, 70% balance before shipping.

4. What's your fast delivery time for sample 1-10pcs?

Within 2 day once receive your payment.

5. Can I add my Logo on the product label?

Yes.

6. I don’t know how many Led High Bay Light should I use, can you advise?

Yes, we can help you do the lighting design using software Dialux, IES file is available if you have the design team.
