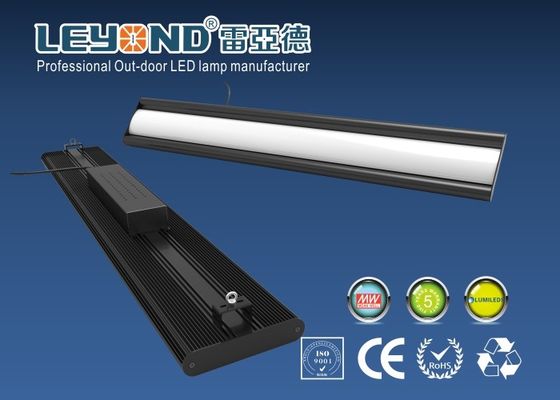

Anti - Glare 60w 90w 4ft 5ft LED HighBay Light For Exhibition Halls

large.img.alt
small.img.alt small.img.alt

Large Image :  Anti - Glare 60w 90w 4ft 5ft LED HighBay Light For Exhibition Halls

Product Details:

Place of Origin: Shenzhen, China
Brand Name: LEDYOND
Certification: CE RoHS
Model Number: LY-HB58100-XX

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: $80-100 usd/pcs
Packaging Details: Standard export carton 1pcs/carton,WG:8.8kg, Cartion Size:64*40*16cm
Delivery Time: 7-10 work days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000 pcs/month
Detailed Product Description
Item: 4ft 5ft Led Linear High Bay LED Source: Bridgelux Chip
Watt: 100W Luminous: 12000lm
Driver: Meanwell Driver Beam Angle: 24/36/60/90 150*70 Degree
CCT: WW/NW/PW Lifetime: >50000 Hours
High Light:

led high bay lamp

,

high bay led lighting

New design anti-glare 60w 90w 4ft 5ft led linear high bay



1. Application


Free workshop/freight house / warehouse/ Department Stores/supermarket / Sports center/gym / swimming pool / badminton court/ Exhibition Halls/school / subway / buss station / airport/ Parking Garages/plant / production area2





Features



1, unique structure design and original 3030 chip.
2, System efficacy >115 lm/W.
3, Installation Types: cable grippers hanging; mobile ceiling mount; fixed ceiling mount.
4, Dimming and Microwave sensor functions available and Light sensor.
5, Small size,light weight,reduce transportation costs.
6, Aircraft-grade 6063 aluminum housing, quick heat sink and durable.
7, Lightweight lamp body, easy installation for high ceiling areas.
8, Anti-glare and uniform light level to avoid any visual discomfort.
Product Description



1) Aluminum + PC. Anti-glare lens.
2) Bridgelux chip. High luminous efficiency, > 150 LM/W;
3) Whole lamp output light efficiency>120 LM/W.
4) All leds connected in series,even one led dies out,other leds will not be affected;
5) Light facula is very uniform, no light pollution and no glare;
6) Comes with ambient light on the secondary road,the lux of secondary road is half of the main road.
7) IP66 waterproof design.
8) Modular structure, easy to do replacement and maintaining.
9) Module and whole lamp can be chosen.


Anti - Glare 60w 90w 4ft 5ft LED HighBay Light For Exhibition Halls 0

Anti - Glare 60w 90w 4ft 5ft LED HighBay Light For Exhibition Halls 1



Technical Datas:




Optical
LED Luminance >12000lm
Light Fixture Luminance >11800lm
CCT 6000±500K
CRI >72
LED Bridgelux chips
Electrical
Input Voltage 90-305V AC, 50/60Hz
Power Consumption ≦105W (of Total System)
Power Factor ≧0.9
Power Efficiency >92%
EMI Grade EMI Class A
Protection Over Current/Over Voltage/Thunder Protection
Luminance Efficacy

>120lm/W

Mechanical and System
IP Level IP65
Dimension 1200*192*102 mm
Net Weight 6.7 Kg
Heat Solution Convection







Operation and Storage Condition:



• Operation Ambient Temperature -30 to +60°C, Relative Humidity 20~90%

• Input Voltage 90-305V AC, 50/60Hz

• Storage Ambient Temperature -40 to +85°C, Relative Humidity 5~95%

• Mounting Height : Suitable for 7-8M height



Our Services:
1. Factory price, large monthly output
2. 5 years warranty, high quality guarantee
3. professional Export service, easy to communicate and save your much time
4.Timely delivery, let you win biggest markets advantage
5. Satisfied After-sales service, to be your reliable supplier
6. any question will be get answer within 12 hours
7. R & D team, welcoem OEM and ODM order



Factory Environment:



Shenzhen LEYOND LIGHTING Co., Ltd. is a high-tech corporation founded in 2005, which is the wholy-owned subsidiary of LIYANG Electronic (HK) limited. We concentrateds and specializes in developing and producing high power LED lighting. Our major products include LED Floodlight, COB Led Spot Light&Ceiling Light,LED Hight Bay light and LED Billboard Light etc.Meantime,We also can supply professional lighting solution and OEM service based on customs’ requirement.



FAQ:



Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 7-10 days for bulk order.

Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.

Anti - Glare 60w 90w 4ft 5ft LED HighBay Light For Exhibition Halls 2
