Product Details:
Payment & Shipping Terms:
|
CRI: | >78 | Power: | 60W/90w/120w/150w |
---|---|---|---|
Input Voltage: | AC85-265V | LED Source: | Lumileds 3030 Chips |
Driver: | /Meanwell Driver | IP Rate: | IP65 Protection |
Beam Angle: | 120Degree | Warranty: | 5 Years |
PF: | >0.96 | CCT: | 2700/3000/4000/5700 /6500K |
Highlight: | led high bay lamp,high bay led lighting |

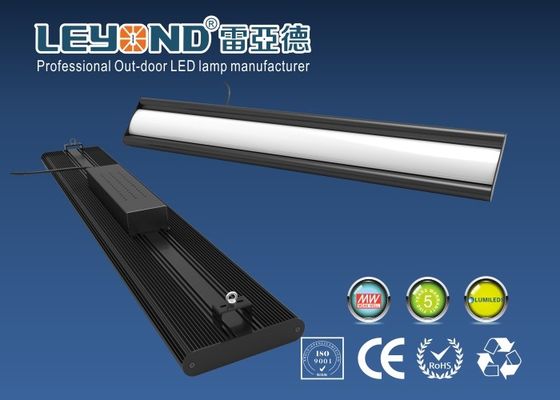

120W 5 years warranty Led Linear Highbay With Famous Brand Driver
Specification:
Par NO Parameter |
LY-HB58060XX (0.6 M) |
LY-HB58090XX (0.9 M) |
LY-HB580120XX (1.2 M) |
LY-HB580150XX (1.5 M) |
Inptut voltage | AC85V~265V 50/60HZ | |||
Sysem consumption(W) | 60 | 90 | 120 | 150 |
Luminous flux(lm) | >5100lm | >7650 | >00 | >12750 |
LED quantity(pcs) | 3030SMD | 3030SMD | 3030SMD | 3030SMD |
Beam Angle | 120° | 120° | 120° | 120° |
CRI | >85 | |||
Color Temperature(CREE) | 3000k,4000k,5000k,5700K, 6500K | |||
Driver | / MEAN WELL | |||
Luminous efficiency(lm/w) | >100 | |||
Lifespan(hrs) | >50000 | |||
IP Rating | IP65 | |||
Dimmable | YES&NO | YES&NO | YES&NO | YES&NO |
Size(mm) | Φ600x192x102 | Φ900x192x102 | Φ1200x192x102 | Φ00x192x102 |
Gross Weigh(kg) | 3.2 | 4.2 | 5.3 | 6.4 |
Package Size(mm) | 640*156*106 | 940*156*106 | 1240*156*106 | 1540*156*106 |
Package Quantity(Pcs) | 1 | 1 | 1 | 1 |
Volume weight(kg) | 3.7kg | 4.9kg | 6.2kg | 7.5kg |
Features:
1,unique structure design and original 3030 chip.
2,System efficacy >100 lm/W.
3,Installation Types: cable grippers hanging; mobile ceiling mount; fixed ceiling mount.
4,Dimming and Microwave sensor functions available and Light sensor.
5,Small size,light weight,reduce transportation costs.
6,Aircraft-grade 6063 aluminum housing, quick heat sink and durable.
7,Lightweight lamp body, easy installation for high ceiling areas.
8,Anti-glare and uniform light level to avoid any visual discomfort.
Pictures:
Installation
1. The entire series of LED Linear Light are designed with wide range voltage,
2.the voltage range is 100~240 volts, the frequency is 50/60Hz.
3. Installation tool: A adjustable wrench group,screwdriver
Installation diagram:
Package
1 Carton = 1 Set
Application:
Free workshop/freight house / warehouse/ Department Stores/supermarket /
Sports center/gym / swimming pool / badminton court/ Exhibition Halls/school / subway /
buss station / airport/ Parking Garages/plant / production area
Warning
1.Do Not Use Other Devices for LED Linear Light ,Installation Such as
Stabilizer, Regulator …etc
2. Do Not Open the Light Engine
3. Do Not Soak the LED Linear Light into Water
4 Do Not Light up the System Without Grounding
FAQ:
1. What is your price?
---Based on your quantity and specification requirement, reasonable and affordable price.
2. How many years warratny?
---5 years warranty, 50000 hours lifespan.
3. What is the payment term?
---For sample order, we can accept T/T, Paypal, West Union, 100% in advance.
For bulk order, 30% deposit in advance by T/T, 70% balance before shipping.
4. What's your fast delivery time for sample 1-10pcs?
---Within 2 day once receive your payment.
5. Can I add my Logo on the product label?
---Yes.
6. I don’t know how many Led High Bay Light should I use, can you advise?
---Yes, we can help you do the lighting design using software Dialux, IES file is available if you have the design team.
