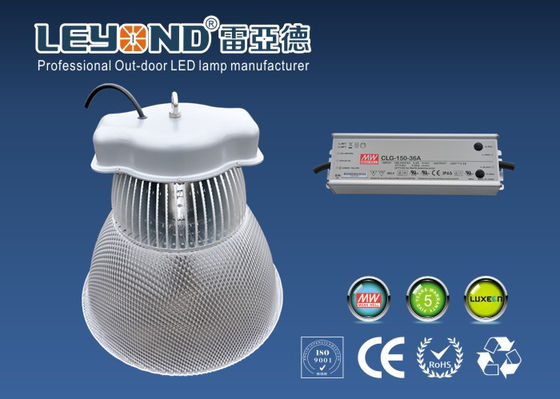

Waterproof LED HighBay Light / High Efficiency Led High Bay Lamp With 90° Beam Angle hot selling

Certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
Customer Reviews
I am very satisfied with your company in terms of quality.

—— Mr Frank

Hello Ada; I wish you have enoyed your holidays. Yes we tested the sample lamp, and we are very satisfy with the quality.

—— Ms.Valentina

I'm Online Chat Now

Waterproof LED HighBay Light / High Efficiency Led High Bay Lamp With 90° Beam Angle hot selling

Waterproof LED HighBay Light / High Efficiency Led High Bay Lamp With 90° Beam Angle hot selling
Waterproof LED HighBay Light / High Efficiency Led High Bay Lamp With 90° Beam Angle hot selling Waterproof LED HighBay Light / High Efficiency Led High Bay Lamp With 90° Beam Angle hot selling

Large Image :  Waterproof LED HighBay Light / High Efficiency Led High Bay Lamp With 90° Beam Angle hot selling

Product Details:

Place of Origin: Shenzhen, China
Brand Name: LEYOND
Certification: CE, LVD, EMC,ROHS
Model Number: LED High Bay Light

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: USD60-USD120 per piece
Packaging Details: Standard Export Carton
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 20000Pcs/Month
Detailed Product Description
CRI: >80 Power: 50W/80w/100w/120w/150w
Input Voltage: AC85-265V LED Source: Lumileds 3030 Chips
Driver: Meanwell Driver IP Rate: IP44
Beam Angle: 90° Warranty: 5 Years
PF: >0.95 CCT: 2700/3000/4000/5700 /6500K
High Light:

led high bay lamp

,

high bay led lighting

5 Years Warranty 50W 80w 100w 120w 150w Waterproof IP44 PC Reflector Dimming AC 220V LED High Bay Light/Lamp​ With Famous Brand Driver


Waterproof LED HighBay Light / High Efficiency Led High Bay Lamp With 90° Beam Angle hot selling 0


Specification:



Par NO
Parameter
LY-HB31050WW LY-HB31050NW LY-HB31050PW
Inptut voltage AC85V~265V 50/60HZ
Sysem consumption(W) ≤52W  ≤52W ≤52W
Luminous flux(lm) 4780lm  4650m 4800lm
LED quantity(pcs) 3030SMD 3030SMD 3030SMD
Beam Angle 90° 90° 90°
CRI >85
Color Temperature(CREE) 3000k,4000k,5000k,5700K, 6500K
Meterial  Magnesium Aluminum + PC cover
Driver / MEAN WELL
Luminous efficiency(lm/w) >100
Lifespan(hrs) >50000
IP Rating IP44
Dimmable YES&NO YES&NO YES&NO
Size(mm) Ф325X400 Ф325X400 Ф325X400
Gross Weigh(kg) 3.0 3.0 3.0
Package Size(mm) 405*405*470 405*405*470 405*405*470
Package Quantity(Pcs) 1 1 1
Volume weight(kg) 3.8kg 3.8kg 3.8kg


Features:

1,unique structure design and original 3030 chip.

2,System efficacy >100 lm/W.
3,Installation Types: cable grippers hanging; mobile ceiling mount; fixed ceiling mount.
4,Dimming and Microwave sensor functions available and Light sensor.
5,Small size,light weight,reduce transportation costs.
6,Aircraft-grade 6063 aluminum housing, quick heat sink and durable.
7,Lightweight lamp body, easy installation for high ceiling areas.
8,Anti-glare and uniform light level to avoid any visual discomfort.
Waterproof LED HighBay Light / High Efficiency Led High Bay Lamp With 90° Beam Angle hot selling 1

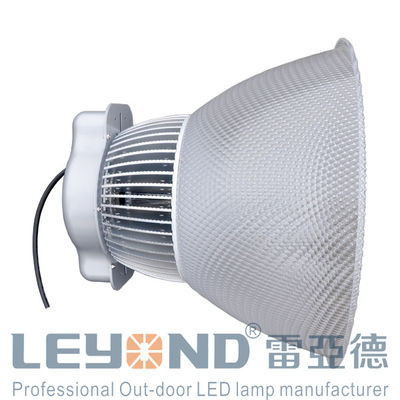

Pictures:

Waterproof LED HighBay Light / High Efficiency Led High Bay Lamp With 90° Beam Angle hot selling 2

Waterproof LED HighBay Light / High Efficiency Led High Bay Lamp With 90° Beam Angle hot selling 3



Installation


1. The entire series of LED Linear Light are designed with wide range voltage,
2.the voltage range is 100~240 volts, the frequency is 50/60Hz.
3. Installation tool: A adjustable wrench group,screwdriver
 Installation diagram:





Package



1 Carton = 1 Set Carton Size: 405mm×405mm×470mm

2  Net weight:2.07KG Gross weight:3.0KG

Waterproof LED HighBay Light / High Efficiency Led High Bay Lamp With 90° Beam Angle hot selling 4



Application:

Free workshop/freight house / warehouse/ Department Stores/supermarket /
Sports center/gym / swimming pool / badminton court/ Exhibition Halls/school / subway /
buss station / airport/ Parking Garages/plant / production area



Warning


1.Do Not Use Other Devices for LED Linear Light ,Installation Such as
Stabilizer, Regulator …etc
2. Do Not Open the Light Engine
3. Do Not Soak the LED Linear Light into Water
4 Do Not Light up the System Without Grounding

FAQ:
1. What is your price?
---Based on your quantity and specification requirement, reasonable and affordable price.
2. How many years warratny?
---5 years warranty, 50000 hours lifespan.
3. What is the payment term?
---For sample order, we can accept T/T, Paypal, West Union, 100% in advance.
   For bulk order, 30% deposit in advance by T/T, 70% balance before shipping.
4. What's your fast delivery time for sample 1-10pcs?
---Within 2 day once receive your payment.
5. Can I add my Logo on the product label?
---Yes.
6. I don’t know how many Led High Bay Light should I use, can you advise?
---Yes, we can help you do the lighting design using software Dialux, IES file is available if you have the design team.
