Industrial UFO LED High Bay Light 100W With Meanwell Driver , 120lm/W Efficiency

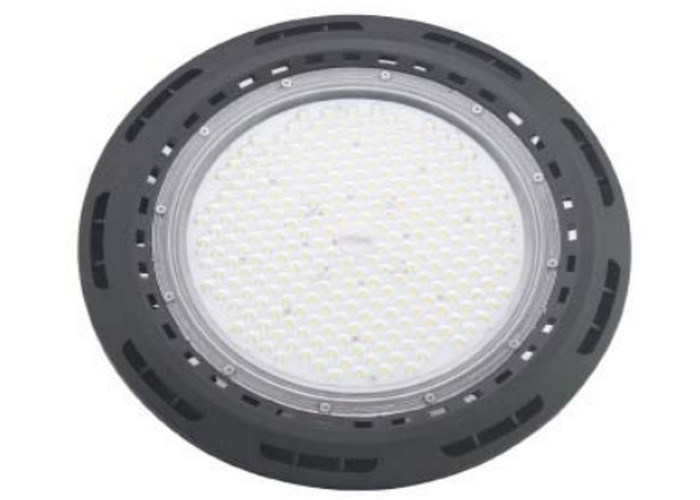

Large Image :  Industrial UFO LED High Bay Light 100W With Meanwell Driver , 120lm/W Efficiency

Product Details:

Place of Origin: China
Brand Name: Leyond
Certification: CE,ROHS
Model Number: LY-HB39150-XX

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Contact me
Packaging Details: 2pcs/carton,normal packing
Delivery Time: 5-7 working days for sample order,7-15 working days for normal order
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 10000 Piece/Pieces per Month OEM is avialable
Detailed Product Description
Product Name:: Led High Bay Light Driver Brand: Meanwell
LED CHIP: Lumileds 3030 Beam Angle: 60/90°/120
Luminous Flux(lm): 18000 Lamp Luminous Efficiency: 120lm/w
High Light:

led high bay lamps


led high bay lamp

Industrial UFO LED High Bay Light 100W With Meanwell Driver , 120lm/W Efficiency



Up to 80% Energy-saving compared to metal halide lamp, mercury-free and 100% recyclable, energy saving and environmental protection

Isolated internal led driver, easy installation, safety guaranteed

High PF value 0.9 above and THD less 15% for decrease of electricity loss

Up to120LM/W high light efficacy, 50000h above lifespan, 5 Years warranty, cost effective

Power supply key components adopt world brand,No flicker, no delay, Instant on/off

Designed for hook type, can be directly replaced is used to quick and easy

installation to minimize retrofit and maintenance costs

Small size, less weight and durable is the best choice for warehouses, stadiums, exhibition spaces, high ceiling lights.

Using imported chip, LED encapsulation structure optimization, to achieve low light failure, high photosynthetic efficiency, energy conservation and environmental protection advantages.


Par NO


LY-HB39150WW LY-HB39150NW LY-HB39150PW
Inptut voltage AC100V240V 50/60HZ
Sysem consumption(W) ≤152 ≤152 ≤152
Light Fixture Luminance (lm) 18200 18800 19500
LED type Bridgelux 3030 Bridgelux 3030 Bridgelux 3030
LED QTY 245 245 245
System Efficiency 90% 90% 90%
Driver MEAN WELL HBG series
Beam Angle 60°. 90°.120° 60°. 90°.120° 60°. 90°.120°
CRI 80 80 80
Color Temperature(CREE) 2700-3200k 4000-4500k 5000-6500k
Meterial Magnesium Aluminum + PC cover
Lifespan(hrs) 50000
IP Rating IP65
Product Size(mm) Φ325X188 Φ325X188 Φ325X188
NET Weight(KG) 3.2 3.2 3.2



Industrial UFO LED High Bay Light 100W With Meanwell Driver , 120lm/W Efficiency 0

1. How to choose LED light source?
A: Lumens(LM), light efficiency (LM/W), Life span (hrs) are very important factors when choosing LED light source. The higher, the better. Besides, brand of LED chip, LED base and other materials will influence the product reliability.
2. Why choose Leyond Lighting?
A: Client-oriented, technology first, hornest operation is our business philosophy. Leyong always treat the clients benefit as the most important thing. So, we use the top brand material to produce high quality product.
3. What can Leyond offer?
A: Our products covers a wide range. We can offer you, LED flood light, LED high bay, LED downlight, LED ceilling light, LED spot light, LED tube, LED module, LED Street Light, ect.
4. How to place an order?
A: Contact our sales representatives by email, skype or making a call, we will soon send you confirm with you for your detailed requirements. Then we send you PI for your approval and payment. You can choose wire transfer, PayPal, west union to send us payment.
5. How long will be the lead time?
A. This will be subject to your order quantity. Normally, below 5,000pcs, we will deliver within 15 working days. For large quantity, please confirm with your order.
6. Can you accept OEM or ODM design?
A: Yes,OEM or ODM design is available
7.What is the delivery term?
A:EXW,FOB,CIF is available.
