IP65 Waterproof LED UFO High Bay Light 200W , 130lm/w led UFO highbay for warehouse lighting

Certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
Customer Reviews
I am very satisfied with your company in terms of quality.

—— Mr Frank

Hello Ada; I wish you have enoyed your holidays. Yes we tested the sample lamp, and we are very satisfy with the quality.

—— Ms.Valentina

I'm Online Chat Now

IP65 Waterproof LED UFO High Bay Light 200W , 130lm/w led UFO highbay for warehouse lighting

IP65 Waterproof LED UFO High Bay Light 200W , 130lm/w led UFO highbay for warehouse lighting
IP65 Waterproof LED UFO High Bay Light 200W , 130lm/w led UFO highbay for warehouse lighting IP65 Waterproof LED UFO High Bay Light 200W , 130lm/w led UFO highbay for warehouse lighting IP65 Waterproof LED UFO High Bay Light 200W , 130lm/w led UFO highbay for warehouse lighting IP65 Waterproof LED UFO High Bay Light 200W , 130lm/w led UFO highbay for warehouse lighting IP65 Waterproof LED UFO High Bay Light 200W , 130lm/w led UFO highbay for warehouse lighting IP65 Waterproof LED UFO High Bay Light 200W , 130lm/w led UFO highbay for warehouse lighting

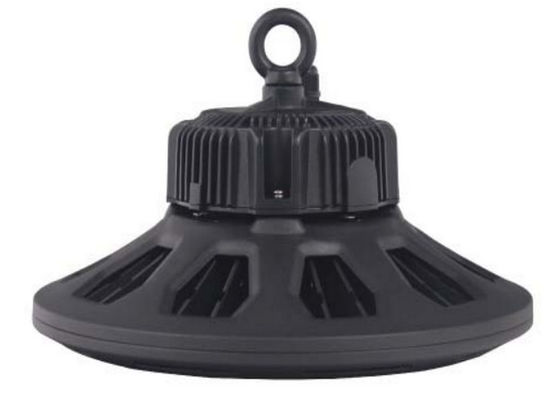

Large Image :  IP65 Waterproof LED UFO High Bay Light 200W , 130lm/w led UFO highbay for warehouse lighting

Product Details:

Place of Origin: Shenzhen, China
Brand Name: LEDYOND
Certification: CE ROHS
Model Number: LY-HB38200WW

Payment & Shipping Terms:

Minimum Order Quantity: 10Pcs
Price: 65usd/pcs
Packaging Details: Standard Export Carton
Delivery Time: 7-10 Working days
Payment Terms: T/T, Western Union, T/T, Western Union, MoneyGram, L/C
Supply Ability: 10000 Pcs/Month
Detailed Product Description
Item: Ufo High Bay Light 200w Power: 200W
Input Voltage: 90-305V AC Chip: Lumileds Chip
Driver: Meanwell HLG Driver IP Rate: IP65
Lifespan: 50000 Hours Warranty: 5 Years
Lumen: 30000 Efficiency: 120lm/w
High Light:

led high bay lamps

,

led high bay lamp



IP65 Waterproof LED UFO High Bay Light 200W , 130lm/w led UFO highbay for warehouse lighting



Technical parameter:

Model Inptut voltage Sysem consumption

Light Fixture

Luminance

LED type LED
QTY
LY-HB38200WW AC100V~240V
50/60HZ
≤202W 24000lm
SMD3030
360
LY-HB38200NW 25200lm
LY-HB38200PW 26000lm




Model

System

Efficiency

Driver Beam Angle CRI Color Temperature(CREE)
LY-HB38200WW >90% MEAN WELL 60°/90°/120° >80 2700-3200k
LY-HB38200NW 4000-4500k
LY-HB38200PW 5000-6500k






Model Meterial Lifespan(hrs) IP Rating Product Size NET
Weight
LY-HB38200WW Magnesium
Aluminum + PC cover%
>50000 IP65 Φ400X204mm 3.95kg









Dimension

IP65 Waterproof LED UFO High Bay Light 200W , 130lm/w led UFO highbay for warehouse lighting 0






Package

Carton Size: 360mm×360mm×200mm

Net weight:2.6KG Gross weight:3.7KG







Assembly and Installation

Assembly Electricity

Ø Blue : Neutral

Ø Brown : Line

Ø Yellow-Green : Ground

IP65 Waterproof LED UFO High Bay Light 200W , 130lm/w led UFO highbay for warehouse lighting 1







Installtion
Step1. Ensure all power disconnected and turn off the power switch.
Step2. Knowing the inside diameter of the circular ring,then choose suitable hook for the lamp.
Step3. Fix the hook before installation and enable it to support over 3 times weight of the lamp. Connect the lamp with hook and make it safe.
Step4. Connect the input cables of lamp to power supply mains and wrap up the cables with insulated sleeve.
Step5. Switch on the power, the lamp will light on. Refer to the left figure.
In case of any abnormal phenomenon or problem, please switch off the power supply then contact with Genice customer service center.
IP65 Waterproof LED UFO High Bay Light 200W , 130lm/w led UFO highbay for warehouse lighting 2

Company Information:

Shenzhen LEYOND LIGHTING Co., Ltd. is a high-tech corporation founded in 2005, which is the wholy-owned subsidiary of LIYANG Electronic (HK) limited. We concentrates and specializes in developing and producing high power LED lighting. Our major products include LED Floodlight, LED Streetlight,LED Hight Bay light and LED Billboard Light etc. Meantime,We also can supply professional lighting solution and OEM service based on customs’ requirement.

FAQ:

1. What is your price?
Based on your quantity and specification requirement, reasonable and affordable price.
2. How many years warratny?
5 years warranty, 50000 hours lifespan.
3. What is the payment term?
For sample order, we can accept T/T, Paypal, West Union, 100% in advance.
For bulk order, 30% deposit in advance by T/T, 70% balance before shipping.
4. What's your fast delivery time for sample 1-10pcs?
Within 2 day once receive your payment.
5. Can I add my Logo on the product label?
Yes.
6. I don’t know how many Led High Bay Light should I use, can you advise?
Yes, we can help you do the lighting design using software Dialux, IES file is available if you have the design team.
