Product Details:
Payment & Shipping Terms:
|
LED Brand: | Luxeon 5050 Chips | Driver Brand: | Meanwell Driver |
---|---|---|---|
Warranty Guaranteed: | 5 Years Warranty | Beam: | 25°/60°/90° |
Luminous:: | >160lm/w | CCT: | 2700K-6500K |
Housing Color: | Black Or Grey | Power Factor: | >0.93 |
Powers: | 240W Or 480W | Materials Of Light: | Aluminum + PC |
High Light: | led security flood light,high power led floodlight |

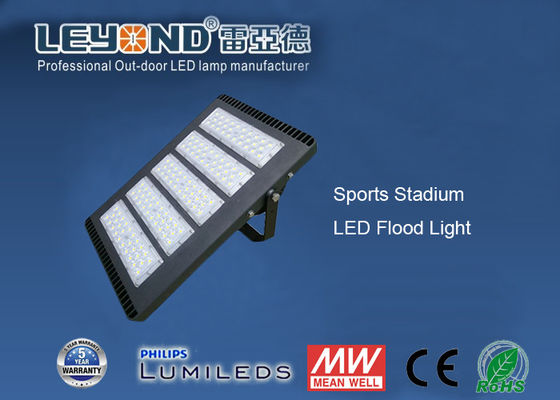

High Lumen Black Color 160lm / W Waterproof Led Flood Lights For Football Playground
Specification:
Par NO/Parameter | LY-ST30240PW |
Inptut voltage | AC85V~265V 50/60HZ |
Sysem consumption(W) | 240W |
Luminous flux(lm) | 35500-38400 |
LED quantity(pcs) | 140pcs |
Beam Angle | 25°/60°/90°degree |
CRI(RI) | >75 |
Color Temperature(CREE) | 2700k-6500k |
Meterial | Aluminum+PC |
Driver Brand | Meanwell driver |
Luminous efficiency | >160lm/w |
Lifespan(hrs) | More than 50000hours |
IP Rating | IP66 |
Size(mm) | 540*340*67mm |
Net Weigh(kg) | 9.5 |
Package Quantity(Pcs) | 1 |
Packing(MM) | 725mm×575mm×170mm |
Gross Weigh(kg) | 10.4 |
Features:
1.Adoption LEYOND exclusive Lens with light transmittance up to 98%.
2.Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the
brightness and illumination uniformity.
3 There are 25°,60°, 90° beam angle options for the Lens.
4 Scientifically-designed heat dissipater with much better cooling effect.
5.High luminous efficiency, Whole lamp output light effiency >160LM/W.
6.High quality power supply, input voltage 100-240V. The power efficiency is more than 90%,
power factor greater than 0.98.
7. For the traditional light source such as the High Pressure Sodium, if the voltage fluctuation
±7%, the brightness and lifetime will be reduced very fast, but for BBE LED, even the voltage
fluctuation is ±20%, the brightness and lifetime will not be influenced at all;Over Current,
Over Voltage, Over Heat, Thunder Protection.
8. Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No
filament and glass frames, avoid break of the traditional lamp,without harm to the human
body.
9.The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions,
eliminated the low color temperature of the sodium lamp which cause the depressed mood,
observers will feel more comfortable.
Product Photos:
Applications:
- Sports Stadium/ Nearby Court/ Garden Lighting/ Public Ground.
Data:
Quality Warranty:
•Quality guaranteeis based on storing, installing ,operating and maintaining correctly inthe normal operation condition.
• It is not included in our maintainingrange when installing inappropriately,breaking the operating rules, and leading to the productsdamaging.
• Ourcompany will maintain the right to either repair, parts replacing,or products exchange during the quality warranty period
