Product Details:
Payment & Shipping Terms:
|
| Power: | 1000W | LED Chip: | LUXEON 5050 |
|---|---|---|---|
| Light Efficiency: | 160lm/w | Beam Angle: | 25 / 60 / 90 Degree |
| LED Driver: | Meanwell | Warranty: | 5 Years |
| IP Rating: | IP65 | Material: | Aluminum |
| Colour: | White | Optic: | LEDil |
| IP: | 65 | IK: | 10 |
| CCT: | PW | CRI: | 80 |
| AC: | 85-265 | Lifespan: | 10 Years |
| High Light: | led stadium lighting,high power led floodlight |
||

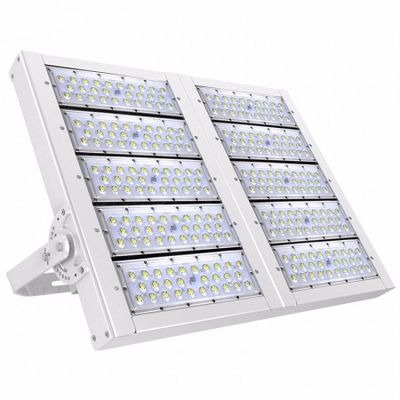

Modular design outdoor Led Stadium Flood lights 500W High Efficiency 160lm/w
Features:
1. Adoption LEYOND exclusive Lens with light transmittance up to 98%.
2. There are 25°,60°, 90° beam angle options for the Lens.
3. High luminous efficiency,Whole lamp output light effiency >160LM/W.
4. Die-cast aluminum with Good heat dissipation
5. World top class Meanwell Driver, 5 years warranty
6. IP66 waterproof design for outdoor application.
Technical Parameter:
Input Voltage:AC100~240V 50/60Hz
Input Current:2.32A/220V AC
Power Factor:0.98
Power Efficiency: ≥88%
Power:500W
Luminous Efficiency:160lm/W
Luminous Flux:80000lm
CRI: >70
Beam Angle: 25°/60°/90°
CCT:WW:2700-3200K NW:4000-4500K PW:5000-6500K
Operational Condition:Temperature:-30℃~60℃ Humidity:10%~90%RH
Product Size:624X458X93mm
IP Rating:IP66
Net Weight:16.8kg
Hot Selling:
Assembly and Installation
·
Assembly-Electricity
· Blue : Neutral
·Brown : Line
·Yellow-Green : Ground
Quality Warranty:
• Quality guaranteeis based on storing, installing ,operating and maintaining correctly inthe normal operation condition.
• It is not included in our maintainingrange when installing inappropriately,breaking the operating rules, and leading to the productsdamaging.
• Ourcompany will maintain the right to either repair, parts replacing,or products exchange during the quality warranty period
