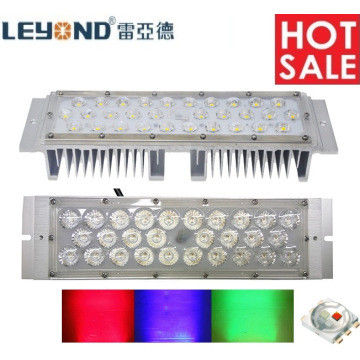

35W RGB Full Color 5050 LED Flood Light Module DMX IR RF Control RGB wall washer light

35W RGB Full Color 5050 LED Flood Light Module DMX IR RF Control RGB wall washer light
35W RGB Full Color 5050 LED Flood Light Module DMX IR RF Control RGB wall washer light 35W RGB Full Color 5050 LED Flood Light Module DMX IR RF Control RGB wall washer light 35W RGB Full Color 5050 LED Flood Light Module DMX IR RF Control RGB wall washer light 35W RGB Full Color 5050 LED Flood Light Module DMX IR RF Control RGB wall washer light 35W RGB Full Color 5050 LED Flood Light Module DMX IR RF Control RGB wall washer light 35W RGB Full Color 5050 LED Flood Light Module DMX IR RF Control RGB wall washer light 35W RGB Full Color 5050 LED Flood Light Module DMX IR RF Control RGB wall washer light 35W RGB Full Color 5050 LED Flood Light Module DMX IR RF Control RGB wall washer light 35W RGB Full Color 5050 LED Flood Light Module DMX IR RF Control RGB wall washer light

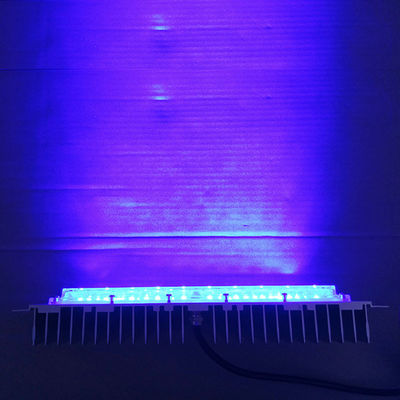

Large Image :  35W RGB Full Color 5050 LED Flood Light Module DMX IR RF Control RGB wall washer light

Product Details:

Place of Origin: China
Brand Name: LEYOND
Certification: CE ROHS
Model Number: LY-ST53035RGB

Payment & Shipping Terms:

Minimum Order Quantity: 1Pcs
Price: Negotiable
Packaging Details: 1 Inner Carton = 1 Set Weight:0.92KG 1 Outer Carton= 20 Set Weight:21.0KG Inner Carton Size : 320mm X 85mm X 70mm Outer Carton Size : 465mm X 340mm X 325mm
Delivery Time: 7-10 Working days
Payment Terms: T/T, Western Union
Supply Ability: 100000
Detailed Product Description

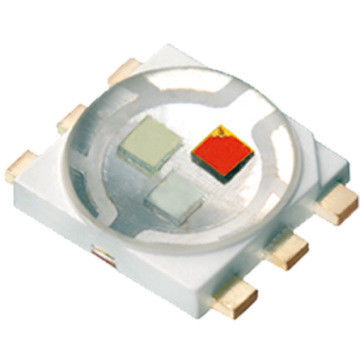

Meterial: Aluminum And PC Chip: Luxeon 5050
CCT: R:620-625nm G:520-530nm B:460-465nm Chip Quantity: 28Pcs
IP Rate: IP66 Watt: 35W
Beam Angle: 25/60/90° Name: 5050 RGB LED Flood Light Module
High Light:

led lighting module

,

led modular

35W RGB Full Color 5050 LED Flood Light Module DMX IR RF Control

35W RGB Full Color 5050 LED Flood Light Module DMX IR RF Control RGB wall washer light 0



1. Product Specification

35W RGB Full Color 5050 LED Flood Light Module DMX IR RF Control RGB wall washer light 1 Model No. LY-ST53035RGB
Power 30/40/50W
Chip Brand Prolight
Emitting Color RGB
Dominant wavelength

R: 620-630nm

G: 520-530nm

B: 460-465nm

LED Q'ty 28PCS
Input Voltage DC13-25V
Material Aluminum + PC
Dimension 300*78*54mm
Net Weight 0.65kg
Beam angle 25° 60° 90°
Operation Condition -30~+60℃


2.Photometric Specification

Emitting Color λd / CCT Typical Lumens Forward Voltage Forward Current
RED 620-630 nm 5400lm 13-17V 3900mA ( MAX )
GREEN 520-530 nm 6600lm 21-25V 3900mA ( MAX )
BLUE 460-465 nm 1530lm 21-25V 3900mA ( MAX )
WHITE R+G+B 6000lm 13-25V 3900mA ( MAX )





3. Outlook

Multicolour 150w outdoor led wall washer DMX512 controller flood light



4. Product Features



>>Control mode:RF/IR/DMX512. Standard DMX512 input interface and a built-mode controller, can be realized in whole or segmented light change control, especially, it can achieve water and complicated effects.

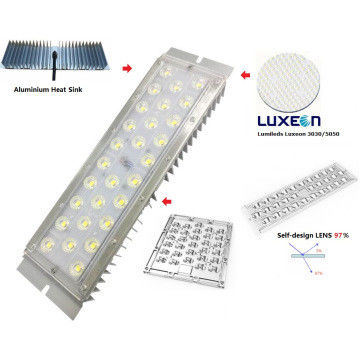

>>Adoption LEYOND exclusive Lens with light transmittance up to 98%.
>>Perfect Light Distribution Solution: Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
>>There are 25,60,90 degrees beam angle options for the Lens.
>>Master or Slave function, if set master, it can stead of the external controller.
>>Reliable constant current driver designed to ensure high-power LED lights for a stable job.
>>Superior ability to adapt to the environment, protection grade IP65, can adapt to a variety of indoor and outdoor temperature and humidity environment. The lamp base is aluminum alloy, solid, anti-aging, anti-variant, long service life.
>>More than 16777 thousand kinds of colors can be realized output, with good light efficiency, beautiful color and so on.
>>Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp, without harm to the human body.



5. Package

Multicolour 150w outdoor led wall washer DMX512 controller flood light







6. Assembly-Electricity

Multicolour 150w outdoor led wall washer DMX512 controller flood light

Project Case
35W RGB Full Color 5050 LED Flood Light Module DMX IR RF Control RGB wall washer light 5

Multicolour 150w outdoor led wall washer DMX512 controller flood lightMulticolour 150w outdoor led wall washer DMX512 controller flood light



Company Information

Multicolour 150w outdoor led wall washer DMX512 controller flood lightMulticolour 150w outdoor led wall washer DMX512 controller flood lightMulticolour 150w outdoor led wall washer DMX512 controller flood lightMulticolour 150w outdoor led wall washer DMX512 controller flood lightMulticolour 150w outdoor led wall washer DMX512 controller flood lightMulticolour 150w outdoor led wall washer DMX512 controller flood lightMulticolour 150w outdoor led wall washer DMX512 controller flood light



FAQ

Q1. What is your MOQ?

MOQ: 1 Pcs. Which is No MOQ.



Q2. Can I get a lower price for large quantity order?

Yes, please check with our sales staff for the details.



Q3. What is the payment terms of your formal order?

We accept payment via TT, Paypal, Western Union, and we offer EXW terms.



Q4.Can you guarantee the product quality?

We offer 3-10 years warranty to our products. We ensure and guarantee the production quality of all products, either sample order or formal order, with LEYOND's quality control process, we achieved less than 0.2% general failure rate, this was based on our sales records in the past 10 years.



Q5. Can you provide OEM and ODM service?

Yes, we can provide OEM and ODM product, with customized label design on the product and carton box. Or customized carton box, and laser print logo on the lamp fixture.



Q6. Can you provide the certificate and test reports?

Yes, please contact our sales staff, we can provide all the certificates, test reports, photometric reports and IES files of each of our luminaire.



Q7.How do you ship the goods and how long does it take to arrive?

We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.



Q8.What is the lead time of your product?

Our standard lead time for sample is 3-5 days, and normal order lead time is 7-10 days. For the large order lead time, please also check with our sales team.
