Product Details:
Payment & Shipping Terms:
|
| Product Name: | 100W-180W LED Canopy Lights | Color: | White |
|---|---|---|---|
| Power: | 100W-180W | Inptut Voltage: | AC100V～240V 50/60HZ |
| Luminous Flux(lm): | 16000-28800 | Chip Brand: | Luxeon 5050/ Leyond 5050 |
| Beam Angle: | 85 DEG | CRI: | >70 |
| Color Temperature: | Warm White:2700-3200K/ Neutral White: 4000-4500K/ Pure White:5000-6500K | LED Driver: | MEAN WELL HLG / ELG |
| Luminous Efficiency(lm/w): | >160 | Lifespan(hrs): | >50000 |
| IP Rating: | IP66 | Dimmable: | YES＆NO |
| Size(mm): | 383x383x61 | Net Weigh(kg): | 5.8 |
| Package Size(mm): | 415*415*120 |

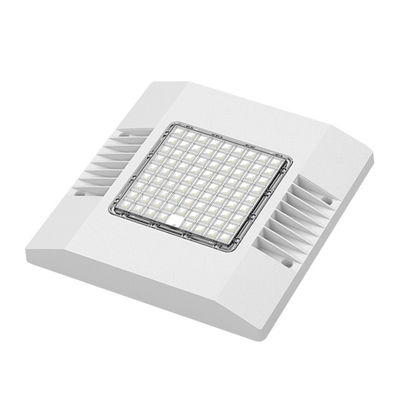

LED Gas Station Canopy Lights 100W-180W Parking Garage Lamp Luxeon 5050 160LM/W
Product Features:
1. Using LUXEON 5050 led chip to ensure high lumen and long life. Whole lamp output light effiency >160LM/W.
2. Adoption LEYOND exclusive Lens with light transmittance up to 98%.
3. Seals using silicone rubber, oil proof, aciduric, alkali fast, fire resistant.
The unit construction of lamp adopt waterproof and dustproof design, It can meet the indoor and outdoor needs .
4. Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
5. There are 95°beam angle for your optional, optimized light distribution design solution.
6. High luminous efficiency, High quality power supply, input voltage 100-240V.
The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.
7. The whole lamp with the powder coating is brighter, without fading and corrosion.
8. Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation:
No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.
9.The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions,
eliminated the low color temperature of the sodium lamp which cause the depressed mood, observers will feel more comfortable.
10.Operation Ambient Temperature -25 to +50°C, Relative Humidity 20~90%
11.Input Voltage 100~240V AC, 50/60Hz
12.Storage Ambient Temperature -30 to +65°C, Relative Humidity 5~95%
13.Mounting Height : Suitable for 6~18m height
Product Specifications:
|
Part NO. |
LY-YL20100XX | LY-YL20120XX | LY-YL20150XX | LY-YL20180XX |
| Power | 100W | 120W | 150W | 180W |
| Luminous flux(lm) | 16000 | 19200 | 24000 | 28800 |
| LED Driver |
MEAN WELL HLG-150 / ELG-150 |
MEAN WELL HLG-200 / ELG-200 |
||
| Input Voltage | AC100~240V 50/60HZ | |||
| Beam angle | 85° | |||
| Chip Brand |
Luxeon 5050/Leyond 5050 |
|||
| CRI | >70 | |||
| Color Temperature | Warm White: 2700K-3200K/ Neutral White: 4000-4500K/ Pure White: 5000K-6500K | |||
| Lifespan(hrs) | >50000 | |||
| Luminous efficiency(lm/w) | >160 | |||
| Material | Die Cast Aluminum | |||
| IP Rating | IP66 | |||
| Dimmable | YES＆NO | |||
| Size(mm) | 383*383*61 | |||
| Net Weigh(kg) | 5.8 | |||
| Package Size(mm) | 415*415*120 | |||
Product Details:
FAQ
* What LED chip is used? Luxeon 5050 chips or Leyond 5050 chips
* What LED driver is used? Meanwell HLG/ ELG driver
* What is the warranty period? In general can work 5 years and We support 5 years warranty
