Product Details:
Payment & Shipping Terms:
|
Type: | LED Canopy Light | Input Voltage(v): | 100-240VAC |
---|---|---|---|
Light Source: | Luxeon SMD5050 | Cri (ra>): | 80 |
Application: | Gas Station .Parking Garage . Warehouse,Petroleum Stations/Parking Garages/Corridors/Low-medium,petrol Station,warehouse Lighting | Material: | Pure Aluminum + PC |
Beam Angle: | 90° | Lamp Power(w): | 100W |
Working Temperature(℃): | -35 - 60 | Warranty: | 5 Years |
High Light: | 85 DEG LED Canopy Lights,100W Canopy Lights For Gas Station,3200K Gas Station Canopy Lights |

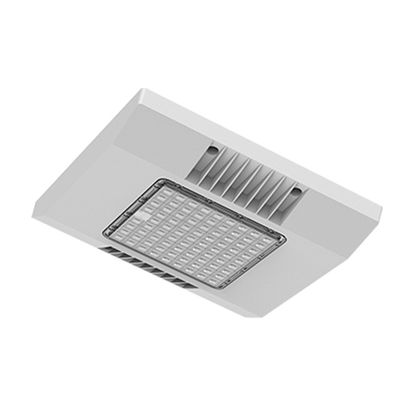

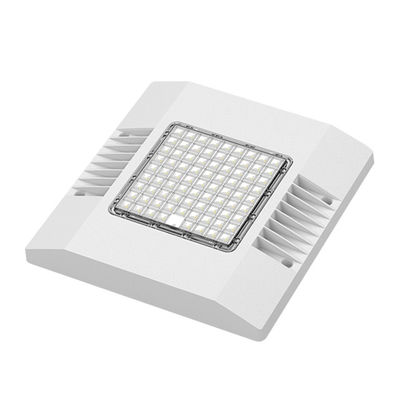

Beam Angle 85 DEG LED Canopy Lights For Gas Station Luxeon 5050
New mold 160lm/w LED Canopy Lights LED gas station light Luxeon 5050 chips
Specification
Par NO Parameter |
LY-YL20100PW | LY- YL20100WW | LY- YL20100NW |
Inptut voltage | AC100V~240V 50/60HZ | ||
Sysem consumption(W) | 100 | 100 | 100 |
Luminous flux(lm) | 16500 | 15000 | 15500 |
Chip Brand | LUXEON 5050/LEYOND 5050 | LUXEON 5050/LEYOND 5050 | LUXEON 5050/LEYOND 5050 |
Beam Angle | 85 DEG | 85 DEG | 85 DEG |
CRI | >70 | ||
Color Temperature | Warm white:5000-6500K / Neutral white:2700-3200K / Pure white:4000-4500K | ||
LED Driver |
MEAN WELL ELG-150 |
||
Luminous efficiency(lm/w) | >155 | ||
Lifespan(hrs) | >50000 | ||
IP Rating | IP66 | ||
Dimmable | YES&NO | YES&NO | YES&NO |
Size(mm) | 383x383x61 | 383x383x61 | 383x383x61 |
Net Weigh(kg) | 5.8 | 5.8 | 5.8 |
Package Size(mm) | 415*415*120 | 415*415*120 |
415*415*120 |
3. Features
• Using LUXEON 5050 led chip to ensure high lumen and long life. Whole lamp output light effiency >160LM/W.
• Adoption LEYOND exclusive Lens with light transmittance up to 98%.
• Seals using silicone rubber, oil proof, aciduric, alkali fast, fire resistant.The unit construction of lamp adopt waterproof and dustproof design, It can meet the indoor and outdoor needs .
• Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
• There are 95°beam angle for your optional, optimized light distribution design solution.
• High luminous efficiency, High quality power supply, input voltage 100-240V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.
• The whole lamp with the powder coating is brighter, without fading and corrosion.
• Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.
• The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood, observers will feel more comfortable.
4. Application
Gas Station | Office |Factory | Warehouse | Shopping Mall | Gymnasium | Plant Area | Petrol Station Conference Centers |Shopping Mall | Garage| Workshop Station
5. Distribution Curve

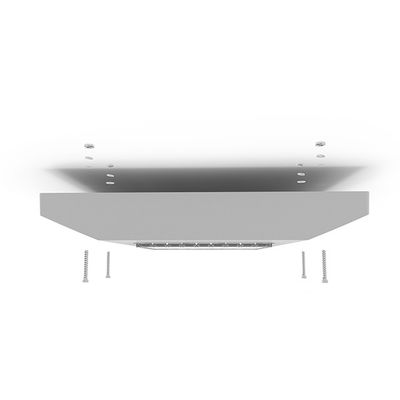

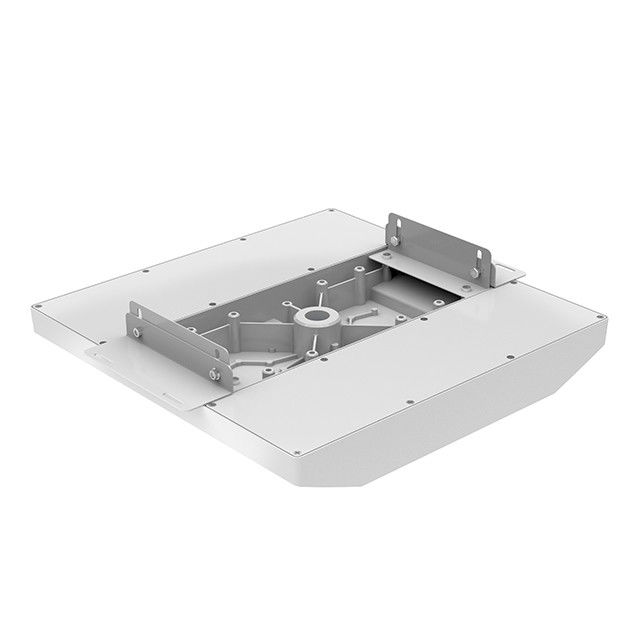

6. Installationn Instruction
7. Operation and Storage Condition
8. Package
Inner box Size: 430mm×430mm×100mm
