Product Details:
Payment & Shipping Terms:
|
| Light Source: | Lumileds Luxeon3030 | Ip Rating: | IP 66 |
|---|---|---|---|
| Item Type: | High Bay Lights | Warranty(year): | 5 |
| Application: | Outdoor | Lamp Body Material: | Aluminum |
| Working Temperature(℃): | -30 -+ 60 | Lamp Luminous Efficiency(lm/w): | >130 |
| Color Temperature(cct): | WW :2700K-3000K NW:4000K-4500K CW:5000K-6500K |

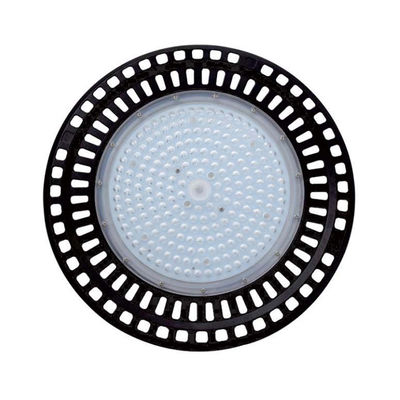

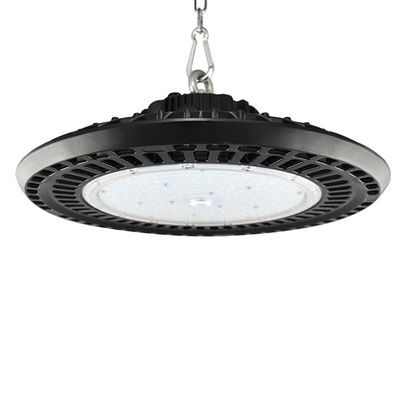

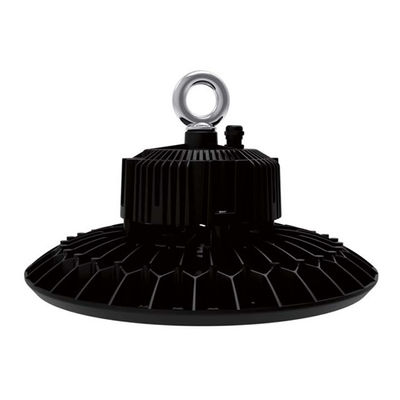

Fast delivery Factory warehouse industrial pendant ceiling 200W UFO led high bay light
Facture
Up to 80% Energy-saving compared to metal halide lamp , mercury-free and 100% recyclable,
energy saving and environmental protection
Isolated internal led driver , easy installation , safety guaranteed
High PF value 0.9 above and THD less 15% for decrease of electricity loss
Up to120LM/W high light efficacy , 50000h above lifespan, 5 Years warranty, cost effective
Power supply key components adopt world brand , No flicker , no delay, Instant on / off
Designed for hook type , can be directly replaced is used to quick and easy
Installation to minimize retrofit and maintenance costs
Small size , less weight and durable is the best choice for warehouses , stadiums , exhibition spaces , high ceiling lights.
Using imported chip, LED encapsulation structure optimization , to achieve low light failure , high photosynthetic efficiency , energy conservation and environmental protection advantages.
Warming:
l Do Not Open the Light Engine
l Do Not Soak the High bay light into Water
l Do Not Light up the System Without Grounding
l Do Not Use Dimmer
Application
There is widely used in Warehouse , Industrial workshops, Logistics centers, Exhibition halls, Stadiums, Docks, Golf courses, Airport, Highway toll stations, supermarkets Light engineering.
structure
Technical parameter
| Par NO Parameter | LY-HB39200WW | LY-HB39200NW | LY-HB39200PW |
| Inptut voltage | AC100V～240V 50/60HZ | ||
| Sysem consumption(W) | ≤102 | ≤102 | ≤102 |
| Light Fixture Luminance(lm) | 24000 | 25200 | 26000 |
| LED type | SMD3030 | SMD3030 | SMD3030 |
| LED QTY | 120 | 120 | 120 |
| System Efficiency | ＞90% | ＞90% | ＞90% |
| Driver | MEAN WELL | ||
| Beam Angle | 120° | 120° | 120° |
| CRI | ＞80 | ＞80 | ＞80 |
| Color Temperature(CREE) | 2700-3200k | 4000-4500k | 5000-6500k |
| Meterial | Magnesium Aluminum + PC cover | ||
| Lifespan(hrs) | ＞50000 | ||
| IP Rating | IP66 | ||

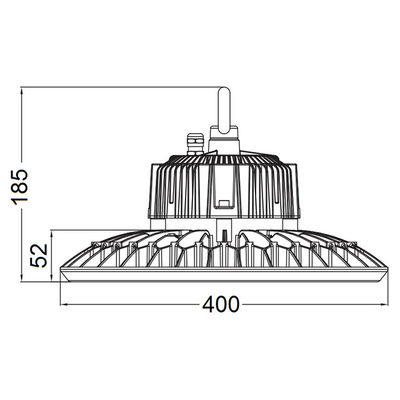

| Product Size(mm) | Φ400X204 | Φ400*204 | Φ400*204 |
| NET Weight(KG) | 4.95 | 4.95 | 4.95 |
package
production
Aging Test:
100% of all lamps will be tested by auto testing line which including different voltage, and keep lighting for 24 hours to test its quality reliability and we will also test its temperature after 24 hours’ lighting. Each lamp should pass all these QC procedures before shipping to customer.
Instatllation Guide:
Application:
The lamp can be widely used in Warehouse,Industrial workshops,Logistics centers,Exhibition halls,Stadiums,Docks,Golf courses,Airport,Highway toll stations,supermarkets Light engineering.
