European Australia Market 240W Industrial Fixture High Bay LED Light With Certificate
Facture
Up to 80% Energy-saving compared to metal halide lamp , mercury-free and 100% recyclable,
energy saving and environmental protection
Isolated internal led driver , easy installation , safety guaranteed
High PF value 0.9 above and THD less 15% for decrease of electricity loss
Up to120LM/W high light efficacy , 50000h above lifespan, 5 Years warranty, cost effective
Power supply key components adopt world brand , No flicker , no delay, Instant on / off
Designed for hook type , can be directly replaced is used to quick and easy
Installation to minimize retrofit and maintenance costs
Small size , less weight and durable is the best choice for warehouses , stadiums , exhibition spaces , high ceiling lights.
Using imported chip, LED encapsulation structure optimization , to achieve low light failure , high photosynthetic efficiency , energy conservation and environmental protection advantages.
Installation:
Step1. Ensure all power disconnected and turn off the power switch.
Step2. Knowing the inside diameter of the circular ring,then choose suitable hook for the lamp.
Step3.Fix the hook before installation and enable it to support over 3 times weight of the lamp. Connect the lamp with hook and make it safe.
Step4. Connect the input cables of lamp to power supply mains and wrap up the cables with insulated sleeve.
Step5. Switch on the power, the lamp will light on. Refer to the left figure.In case of any abnormal phenomenon or problem, please switch off the power supply then contact with Genice customer service center.
Application
There is widely used in Warehouse , Industrial workshops, Logistics centers, Exhibition halls, Stadiums, Docks, Golf courses, Airport, Highway toll stations, supermarkets Light engineering.

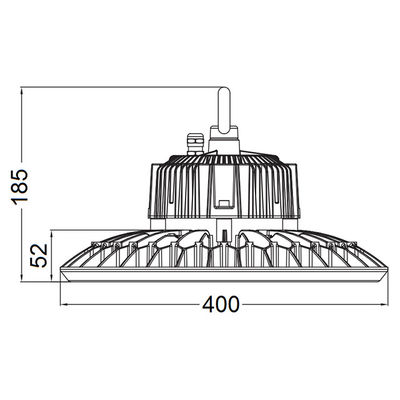

structure
Technical parameter
| Par NO Parameter | LY-HB39240WW | LY-HB39240NW | LY-HB39240PW |
| Inptut voltage | AC100V～240V 50/60HZ | ||
| Sysem consumption(W) | ≤102 | ≤102 | ≤102 |
| Light Fixture Luminance(lm) | 24000 | 25200 | 26000 |
| LED type | SMD3030 | SMD3030 | SMD3030 |
| LED QTY | 120 | 120 | 120 |
| System Efficiency | ＞90% | ＞90% | ＞90% |
| Driver | MEAN WELL | ||
| Beam Angle | 120° | 120° | 120° |
| CRI | ＞80 | ＞80 | ＞80 |
| Color Temperature(CREE) | 2700-3200k | 4000-4500k | 5000-6500k |
| Meterial | Magnesium Aluminum + PC cover | ||
| Lifespan(hrs) | ＞50000 | ||
| IP Rating | IP66 | ||
| Product Size(mm) | Φ400X204 | Φ400*204 | Φ400*204 |
| NET Weight(KG) | 5.42 | 5.42 | 5.42 |
package
Aging Test:
100% of all lamps will be tested by auto testing line which including different voltage, and keep lighting for 24 hours to test its quality reliability and we will also test its temperature after 24 hours’ lighting. Each lamp should pass all these QC procedures before shipping to customer.
Instatllation Guide:
Application:
The lamp can be widely used in Warehouse,Industrial workshops,Logistics centers,Exhibition halls,Stadiums,Docks,Golf courses,Airport,Highway toll stations,supermarkets Light engineering.
testing
exhibition
