Home ProductsLED High Bay Light

0.6M / 0.9M / 1.2M / 1.5M energy efficient high bay lighting AC85-265V hot selling

Certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
Customer Reviews
I am very satisfied with your company in terms of quality.

—— Mr Frank

Hello Ada; I wish you have enoyed your holidays. Yes we tested the sample lamp, and we are very satisfy with the quality.

—— Ms.Valentina

I'm Online Chat Now

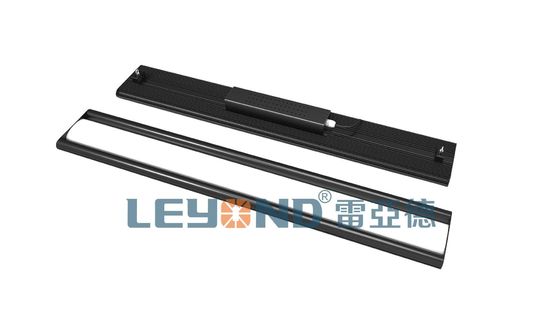

0.6M / 0.9M / 1.2M / 1.5M energy efficient high bay lighting AC85-265V hot selling

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  0.6M / 0.9M / 1.2M / 1.5M energy efficient high bay lighting AC85-265V hot selling

Product Details:

Place of Origin: Shenzhen, China
Brand Name: LEYOND
Certification: CE, LVD, EMC,RoHS
Model Number: LED Linear High Bay Light

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: USD70-USD120 per piece
Packaging Details: Standard Export Carton
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 20000Pcs/Month
Detailed Product Description
CRI: >83 Power: 60W/90w/120w/150w
Input Voltage: AC85-265V LED Source: Lumileds 3030 /Bridgelux Chips
Driver: /Meanwell Driver IP Rate: IP65 Protection
Beam Angle: 120Degree Warranty: 5 Years
PF: >0.92 CCT: 2700/3000/4000/5700 /6500K
High Light:

led high bay lamps

,

led high bay lamp

0.6M / 0.9M / 1.2M / 1.5M energy efficient high bay lighting AC85-265V



0.6M / 0.9M / 1.2M / 1.5M energy efficient high bay lighting AC85-265V hot selling 0
 0.6M / 0.9M / 1.2M / 1.5M energy efficient high bay lighting AC85-265V hot selling 1
Specification:



Par NO
Parameter
LY-HB58060XX
(0.6 M)
LY-HB58090XX
(0.9 M)
LY-HB580120XX
(1.2 M)
LY-HB580150XX
(1.5 M)
Inptut voltage AC85V~265V 50/60HZ
Sysem consumption(W) 60 90 120 150
Luminous flux(lm) >5100lm >7650 >00 >12750
LED quantity(pcs) 3030SMD 3030SMD 3030SMD 3030SMD
Beam Angle 120° 120° 120° 120°
CRI >85
Color Temperature(CREE) 3000k,4000k,5000k,5700K, 6500K
Driver / MEAN WELL
Luminous efficiency(lm/w) >100
Lifespan(hrs) >50000
IP Rating IP65
Dimmable YES&NO YES&NO YES&NO YES&NO
Size(mm) Φ600x192x102 Φ900x192x102 Φ1200x192x102 Φ00x192x102
Gross Weigh(kg) 3.2 4.2 5.3 6.4
Package Size(mm) 640*156*106 940*156*106 1240*156*106 1540*156*106
Package Quantity(Pcs) 1 1 1 1
Volume weight(kg) 3.7kg 4.9kg 6.2kg 7.5kg


Features:

1,unique structure design and original 3030 chip.
2,System efficacy >100 lm/W.
3,Installation Types: cable grippers hanging; mobile ceiling mount; fixed ceiling mount.
4,Dimming and Microwave sensor functions available and Light sensor.
5,Small size,light weight,reduce transportation costs.
6,Aircraft-grade 6063 aluminum housing, quick heat sink and durable.
7,Lightweight lamp body, easy installation for high ceiling areas.
8,Anti-glare and uniform light level to avoid any visual discomfort.

Pictures:

0.6M / 0.9M / 1.2M / 1.5M energy efficient high bay lighting AC85-265V hot selling 2
 0.6M / 0.9M / 1.2M / 1.5M energy efficient high bay lighting AC85-265V hot selling 3
0.6M / 0.9M / 1.2M / 1.5M energy efficient high bay lighting AC85-265V hot selling 4
 0.6M / 0.9M / 1.2M / 1.5M energy efficient high bay lighting AC85-265V hot selling 5

Installation


1. The entire series of LED Linear Light are designed with wide range voltage,
2.the voltage range is 100~240 volts, the frequency is 50/60Hz.
3. Installation tool: A adjustable wrench group,screwdriver
 Installation diagram:

0.6M / 0.9M / 1.2M / 1.5M energy efficient high bay lighting AC85-265V hot selling 6



Package



1 Carton = 1 Set
0.6M / 0.9M / 1.2M / 1.5M energy efficient high bay lighting AC85-265V hot selling 7



Application:

Free workshop/freight house / warehouse/ Department Stores/supermarket /
Sports center/gym / swimming pool / badminton court/ Exhibition Halls/school / subway /
buss station / airport/ Parking Garages/plant / production area



Warning


1.Do Not Use Other Devices for LED Linear Light ,Installation Such as
Stabilizer, Regulator …etc
2. Do Not Open the Light Engine
3. Do Not Soak the LED Linear Light into Water
4 Do Not Light up the System Without Grounding

FAQ:
1. What is your price?
---Based on your quantity and specification requirement, reasonable and affordable price.
2. How many years warratny?
---5 years warranty, 50000 hours lifespan.
3. What is the payment term?
---For sample order, we can accept T/T, Paypal, West Union, 100% in advance.
   For bulk order, 30% deposit in advance by T/T, 70% balance before shipping.
4. What's your fast delivery time for sample 1-10pcs?
---Within 2 day once receive your payment.
5. Can I add my Logo on the product label?
---Yes.
6. I don’t know how many Led High Bay Light should I use, can you advise?
---Yes, we can help you do the lighting design using software Dialux, IES file is available if you have the design team.
