| Item: | Outdoor 200W Led Tunnel Light | Power: | 200W |
|---|---|---|---|
| Input Voltage: | 85-265V AC | Chip: | Lumileds Chip |
| Driver: | Meanwell CLG-150 Driver | IP Rate: | IP40 |
| Lifespan: | 50000 Hours | Warranty: | 5 Years |
| High Light: | led high bay lamp,high bay led lighting |
||

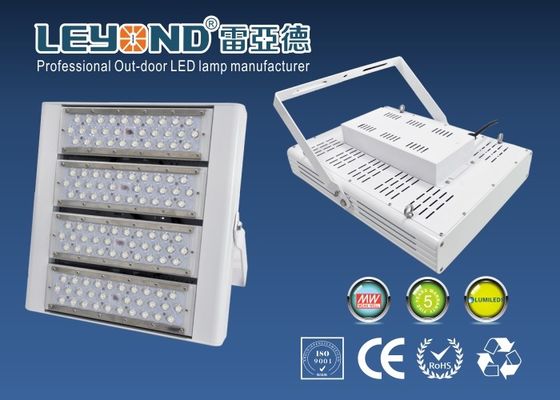

Professional High Lumen Outdoor 200W led tunnel light Meanwell Driver
Product Features:
● Lumileds chips inside,High light output >150Lm/W
● Top Brand Meanwell Driver, 5 years warranty, IP65, PF>0.95
Illuminant parameters:
● Led Type: Lumileds chips
● Input Voltage:85-265V AC, Power factor (PF) :≥0.95
● CCT: 3000K/4000K/5700K/6500K
● Color index (CRI) :≥82Ra
● Beam angle: 120 degree
● LED life span: 5,0000 hours, Warranty: 5 Years
> 120 LM / W LED High Bay Light Indoor Stadium Lighting Comfortable Vision Anti-glare Design Parameter:
|
Model: |
LY-HB55200-XX |
|
LED: |
Lumileds chip |
|
Leds number: |
200 pcs |
|
Color temperature: |
3000K/4000K/5700K/6500K |
|
Power Factor: |
>0.95 |
|
Color rendering index (CRI): |
>82 |
|
Total Lumens: |
>18000lm |
|
Light efficiency: |
>120 lm/w |
|
Lamp Beam Angle |
120º |
|
Power Consumption: |
<155w |
|
IP protection: |
IP40 |
|
Casing Material: |
Aluminum |
|
Input Voltage: |
85-265V AC / 50-60 Hz |
|
Lamp Size: |
L362*W291*H130mm |
|
Lift Time: |
>50,000H |
|
Power Supply: |
Meanwell CLG-150-36A |
|
Weight: |
6.7 kg. |
Application area:
● Replacing traditional High Pressure Sodium Lamp or Metal Halide Lamp.
● Widely used for warehouse, workshop, factory, stadium, department store, supermarket.
Aging test:
100% of all lamps will be tested by auto testing line which including different voltage, and keep lighting for 24 hours to test its quality reliability and we will also test its temperature after 24 hours’ lighting. Each lamp should pass all these QC procedures before shipping to customer.
Company Information:
Shenzhen LEYOND LIGHTING Co., Ltd. is a high-tech corporation founded in 2005, which is the wholy-owned subsidiary of LIYANG Electronic (HK) limited. We concentrates and specializes in developing and producing high power LED lighting. Our major products include LED Floodlight, LED Streetlight,LED Hight Bay light and LED Billboard Light etc. Meantime,We also can supply professional lighting solution and OEM service based on customs’ requirement.
FAQ:
1. What is your price?
Based on your quantity and specification requirement, reasonable and affordable price.
2. How many years warratny?
5 years warranty, 50000 hours lifespan.
3. What is the payment term?
For sample order, we can accept T/T, Paypal, West Union, 100% in advance.
For bulk order, 30% deposit in advance by T/T, 70% balance before shipping.
4. What's your fast delivery time for sample 1-10pcs?
Within 2 day once receive your payment.
5. Can I add my Logo on the product label?
Yes.
6. I don’t know how many Led High Bay Light should I use, can you advise?
Yes, we can help you do the lighting design using software Dialux, IES file is available if you have the design team.
